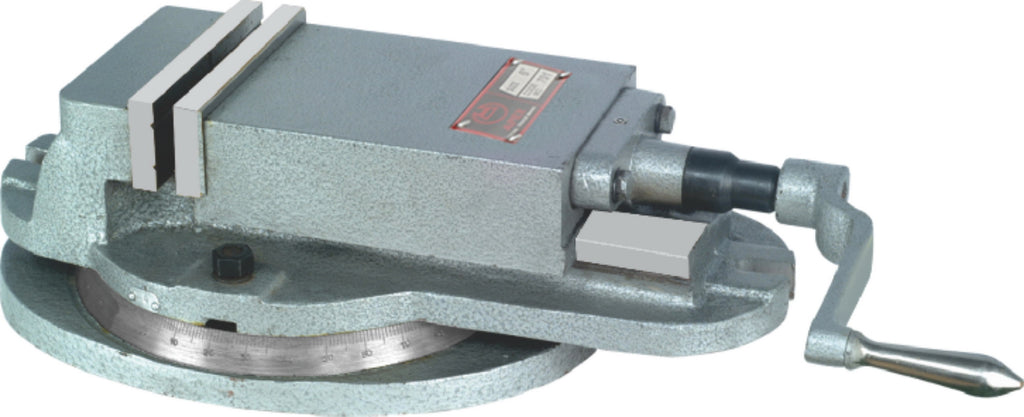

Preci Milling Machine Vice (Swivel Model) Apex Code SG 748

Save 22%

Jaw Size: 4 Inches / 100mm
Price:
Rs. 15,369 Rs. 19,679

Tax included Shipping calculated at checkout

Description

     Features :

  •  Manufactured to consistent accuracy to give prolonged
  • reliable service.
  • Totally enclosed design prevents the ingress of foreign
  • matter and damage to the screw and nut.
  • Swivel base graduated fully 360°.
  • Spares readily available..
  • Tenon Slots in slide and swivel base.
  • Available as plain and swivel vice.
        SPECIFICATIONS
RANGE 4 Inches 6 Inches 8 Inches
Width of Jaws (In mm) 100 150 200
Opening of Jaws (In mm) 100 150 200
Depth of Jaws (In mm) 40 50 60
Length Overall (In mm) 317 480 615
Height Overall (In mm) 120 145 190
Width Overall (In mm) 170 280 325
Tenon slot size (In mm) 16 20 20
Weight In (Kgs) code 18 46 86
