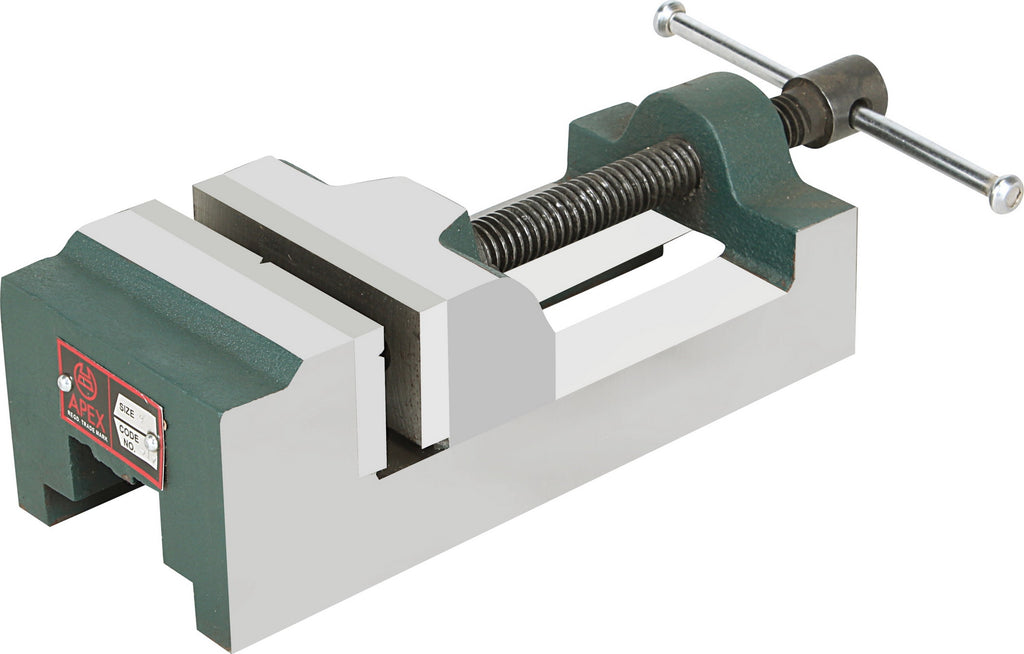

Empire Machine Vice - Apex Code 717

Save 22%

Jaw Size: 75mm
Price:
Rs. 2,999 Rs. 3,839

Tax included Shipping calculated at checkout

Description

   Features :

  • All the sides of the Body are Ground. Perfectly parallel and square to ensure complete alignment of Jaws. They can be used in horizontal, Vertical, and longitudinal positions.

Construction :

  • Body side Base, cast iron of selected quality, Main Screw Handle and side plates, High quality steel.


Finish: Hammer tone mid-grey.




          SPECIFICATIONS
RANGE 40mm 60mm 75mm 100mm
Height (In mm) 45 60 75 80
Width Overall (In mm) 40 65 76 102
Length Overall (In mm) 130 210 235 295
Depth of Jaws (In mm) 22 30 40 45
Opening of Jaws (In mm) 35 65 85 100
Width of Jaws (In mm) 40 60 75 100
Weight In (Kgs) 0.8 2.4 4 6.5
