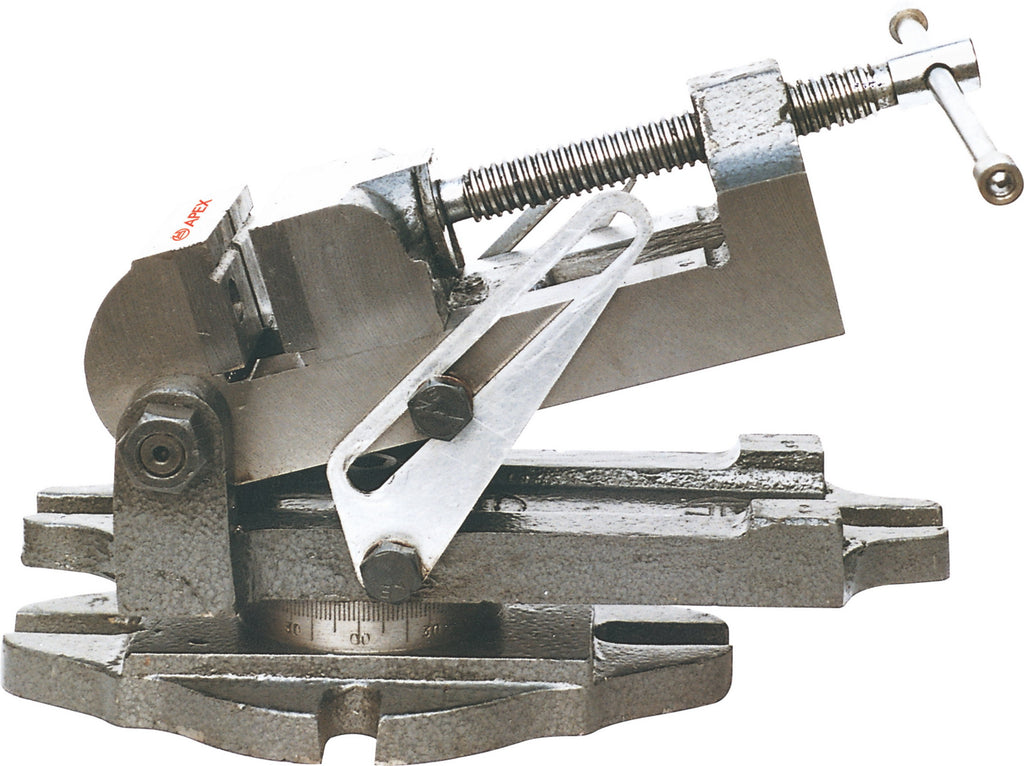

Empire Angle Machine Vice (With Graduated Swivel Base) - Apex Code 717AS

Save 22%

Jaw Size: 60mm
Price:
Rs. 3,999 Rs. 5,119

Tax included Shipping calculated at checkout

Description

Features :
  • Code 717A is mounting on swivel base providing 360° bases have 5/8" keyway and bolt slots for locating and mounting of machine.
Construction :
  • Body side Base, cast iron of selected quality, Main Screw Handle and side plates, High-quality steel.


Finish: Hammer tone mid-grey.



         SPECIFICATIONS
RANGE 60mm 75m
Height Overall (In mm) 115 130
Length Overall (In mm) 230 275
Depth of Jaws (In mm) 110 130
Opening of Jaws (In mm) 65 75
Width of Jaws (In mm) 110 130
Weight In (Kgs) 5 7
