Indexing Device (For 715 & 715E) - Apex Code 715H

Save 22%

For Rotary Size: 6 Inches / 150mm
Price:
Rs. 5,049 Rs. 6,469

Tax included Shipping calculated at checkout

Description

Features :

  • Optional unit to enable the user to convert quickly Rotary Milling to using Indexing Plates.

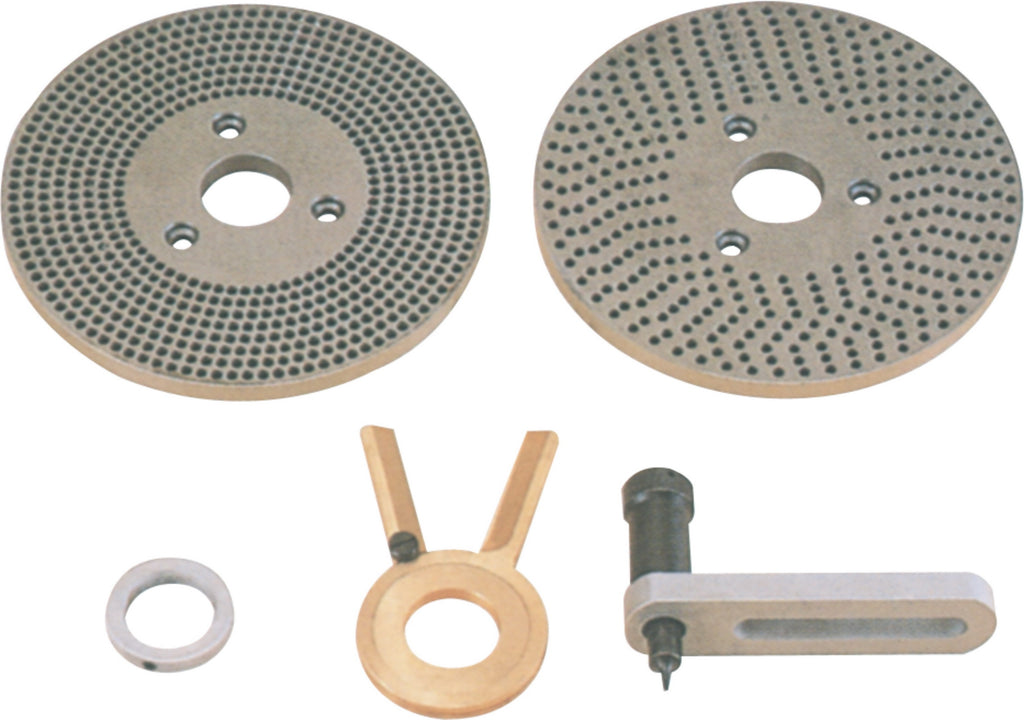

  • The dividing plate set consist of 2 indexing plates, a sector & a handle with plunger.
  • The dividing plate set consist of 2 indexing plates, a sector & a handle with plunger.
  • Using this dividing plate set the indexing of 2 to 60 divisions can be attained quickly and accurately.

Application :

  • APEX ROTARY TABLES have a sturdy design to suit many machining operations on Milling Machines including circular cutting, setting angles, and indexing. They are available in a range of sizes to suit various machines and machining applications.

Construction :

  • The table and base is manufactured from close grain shock resisting Cast Iron dully stress relieved
  • Worm & center table bush made of selected steel.

Inspection :

  • Direct reading to 2 minutes for size 6",8" and 10" on hand
    wheel scale.
  • Direct reading to 1 minute for size 12",15",18" and 20" on
    hand wheel scale.
  • ACCURACY:- Maximum error 4 minutes of circular
    division using handwheels.
  • Table flat to within 0.01 mm / 100 mm.
  • Working surface rotates in its own plane to within 0.030
    mm.
  • Horizontal and Vertical supporting surface square with
    0.01mm/100 mm.
  • Centre bush bore is true to table axis within 0.03 mm.
  • Maximum parallelism error through 360° rotation of table
    is .025 mm.
  • Both horizontal slots in & Vertical mounting on machine table.



        SPECIFICATIONS
RANGE 6" 8" 10" 12" 15" 18" 20"
Dia of Table (in mm) 150 200 250 300 375 450 500
Table T-Slot Size (in mm) 10 13 13 16 16 20 20
Centre Bush Bore (morse taper)
2 3 3 3 3 4 4
Worm & Gear Ratio 02:12 02:12 02:12 01:20 01:20 01:20 01:20
Wheel Calibration (In minutes )
2 2 2 1 1 1 1
No of indexing holes(715 H)
19|27 23|25 30|33 28|31 41|47 39|43 19|27 23|25 30|33 28|31 41|47 39|43 53|61 51|59
Weight (In Kgs) 2.5 2.5 2.5 3.5 3.5 3.5 3.5
