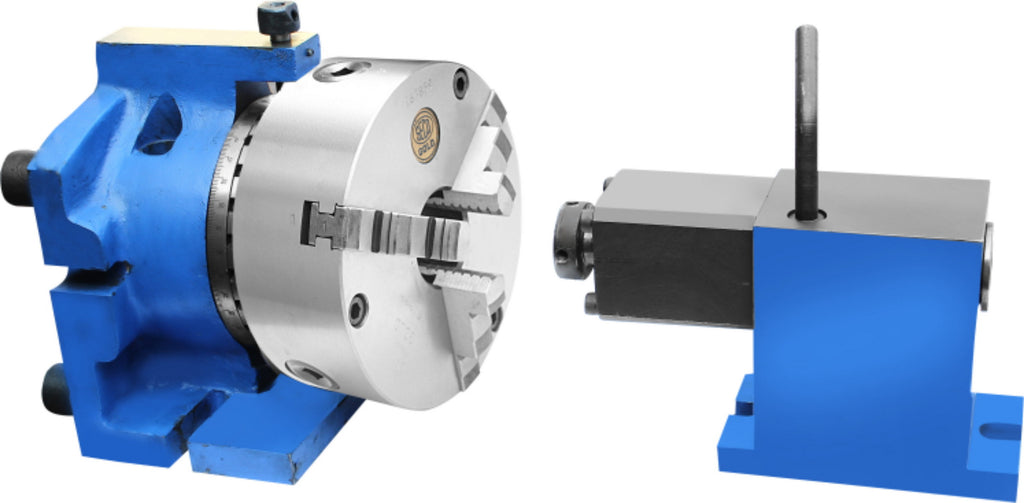

Indexing Milling fixture - Horizontal & Vertical - Apex Code 783

Indexing Milling fixture - Horizontal & Vertical - Apex Code 783

Save 22%
Apex
Title: With Tail Stock
Size: 80/100/125 mm
Price:
Rs. 46,509 Rs. 59,539

Tax included Shipping calculated at checkout

Description

Features :
  • Entire range of horizontal, vertical indexing milling operations can be done with our range of products.
  • Job clamping is fast, indexing is quick thereby increasing production efficiency.
  • Indexing fixture models covers the advantage of conventional Dividing Head and Rotary Table put together.
  • Movable Parts are Hardened & ground for long life.
  • Indexing accuracy is Precise and products can be used on SURFACE GRINDER also.
  • Tail Stock With lead screw movement is provided for center support of Long shaft / Jobs.
  • Tail Stock Center is sliding in hardened and accurately ground bushes.
  • In most model, 24 indexing positions are provided.
  • There is also a graduated collar with 1 deg least count which facilitates odd degree indexing also.



     SPECIFICATIONS
S. No 1 2 3 4 5
Model No. IMF H/V 080 IMF H/V 100 IMF H/V 125 IMF H/V 160 IMF H/V 200
Length MM 200 200 200 225 225
Width MM 110 110 110 140 140
Height MM 185 185 185 240 240
Std. Indexing Positions
 24 24 24 24 24
Weight (Kg) 24 25 30 45 50
Center Height 85 85 85 120 140
Chuck Details With 80 mm 3 jaws chucks With 100 mm 3 jaws chucks With 125 mm 3 jaws chucks With 160 mm 3 jaws chucks
With 200 mm 3 jaws chucks
Indexing Accuracy
 0.03 15 s 0.03 15 s 0.03 15 s 0.03 15 s 0.03 15 s
