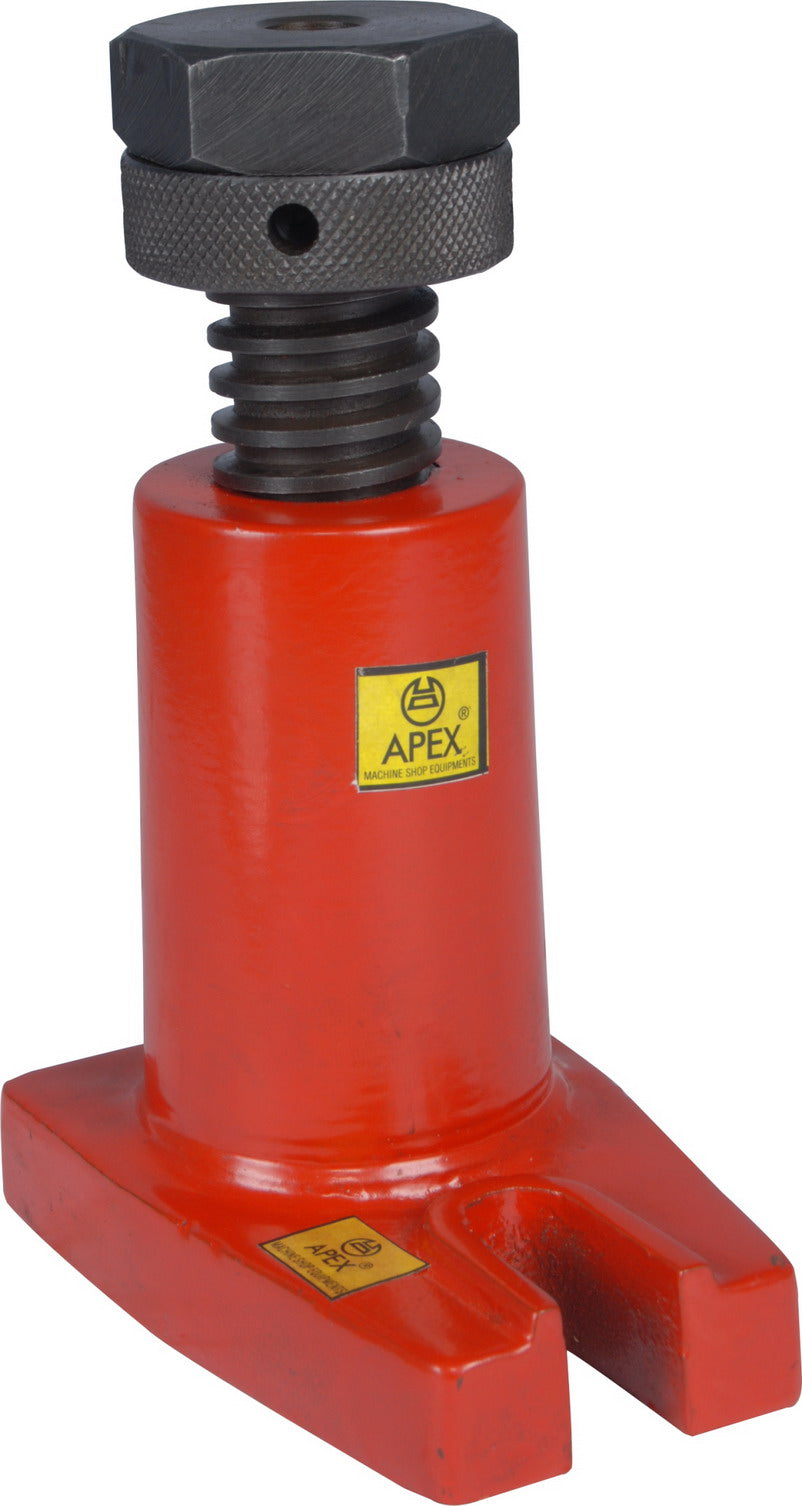

Screw Jack With Single Side Flange (With Ring Type Lock Nut) (S.G. Iron Housing Carbon Steel Spindle) - Apex Code SF 911

Save 22%

Range H1 H2: 100 - 140 mm
Price:
Rs. 2,249 Rs. 2,879

Tax included Shipping calculated at checkout

Description

Features :
  • Centering hole dia, 12 mm.
  • Bottom Flange can be bolted to the T-Slot for stability.
  • Spindle: Carbon Steel Trapezoidal Thread
  • Housing: High Tensile SG IRON.
  • Pads Code P911-8/14 and 9/26 can be used for safe locating of U-Clamps.



        SPECIFICATIONS
Code SF 911 SF911-1 SF911-2
Range H1 H2 100-140 140-200
Barrel Dia 50 50
Slot Width 18 18
Base 75 x 110 75 x 110
Static Load+kN 60  60
Weight In (Kgs) 1.87 2.23
Price Each Rs. 990 1170
Std. Pkg. 4 2
