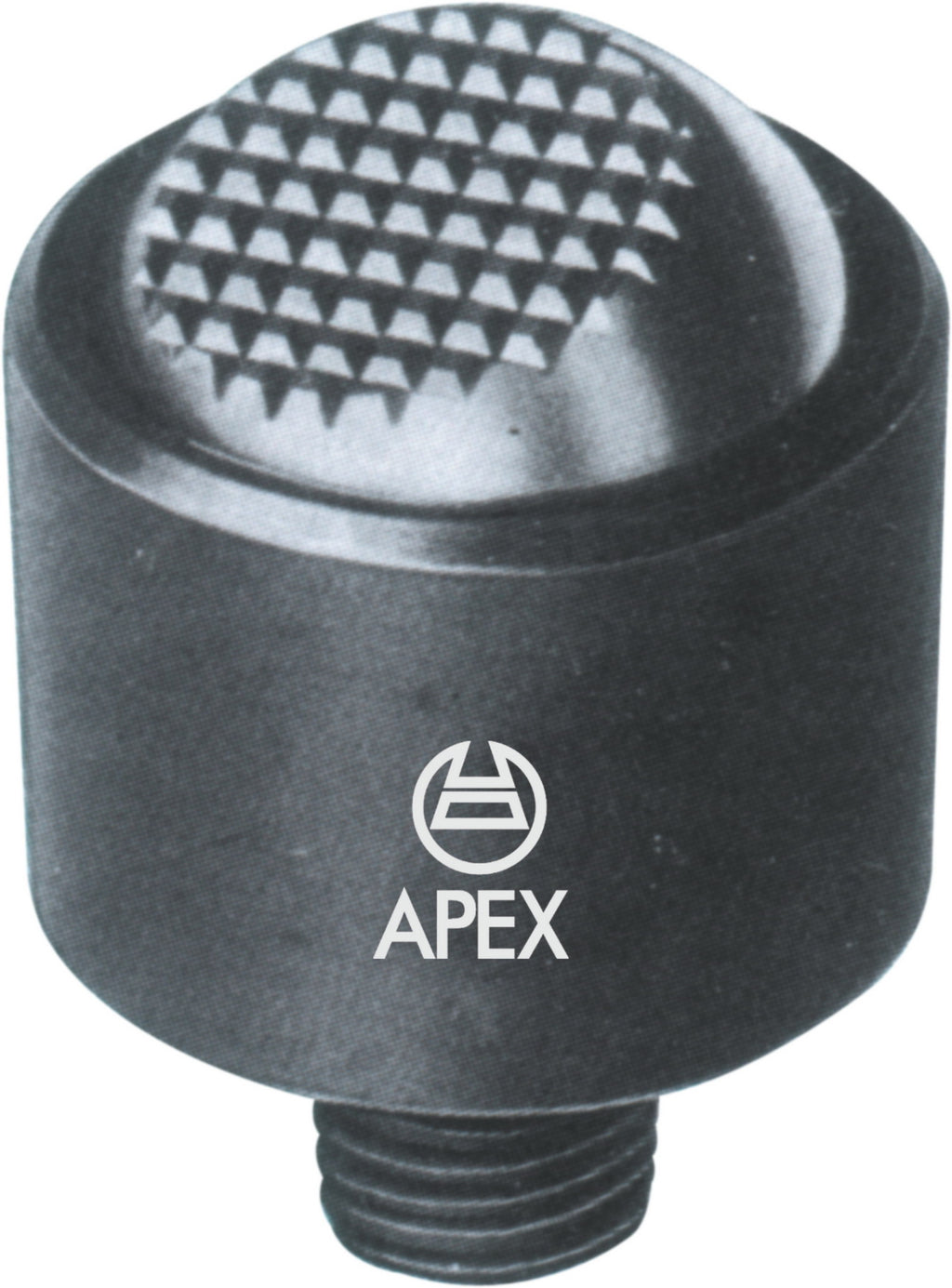

Self Aligning Pad (With Ribbed Ball) - Apex Code 913

Save 22%

Size: 8mm
Price:
Rs. 699 Rs. 895

Tax included Shipping calculated at checkout

Description

Features :
  • Useful for clamping the job from top or bottom.
  • The ball swivels and provides contact with no damage to uneven surface.
Application :
  • Used as stops, supports & thrust elements in jigs & fixtures. They can also be fitted to existing clamping elements.
Construction :
  • Body Steel Heat Treated - Ball Hardened.

Finish : Black Oxidized.



SPECIFICATIONS -  (With Male Thread C,F)
Code 913 913-1 913-2 913-3 913-4 913-5
d1 (In mm) 13 20 20 30 50
d2 (In mm) M8 M10 M12 M16 M20
d3 (In mm) 7.2 10.5 10.5 20 34.5
L1 (In mm) 13 18 18 27 35
L2 (In mm) 8 10 12 16 20
Ball 10 16 16 25 40
A/F SW 11 17 17 27 11
Max. Load Cap. kN (For static load only) 10 25 25 90 165
Weight In (Kgs) 0.013 0.04 0.04 0.1 0.55
