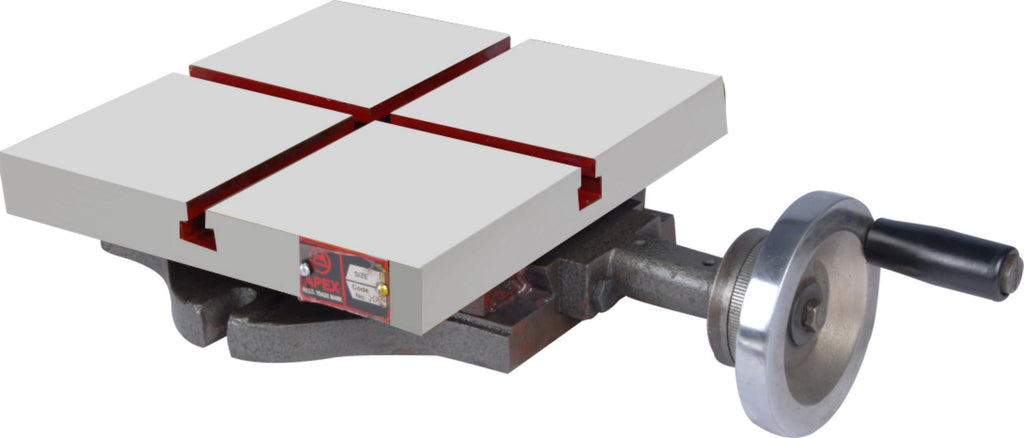

Single Sliding Table (With Calibrated Wheels) Apex Code 708S

Save 22%

Size: 6 x 6 Inches / 150 x 150m
Price:
Rs. 5,959 Rs. 7,629

Tax included Shipping calculated at checkout

Description

 Features :

  • The T-Slots are machined from Solid.
  • Equipped with two-axis positioning.
  • Dovetailed slides have adjustable steel gibs to compensate for wear.
  • The surface table can swivel all around and 0° is marked to show the angular movement.
  • The base has bolt slots for machine mounting.
Application :
  • These precision built standard slide tables are essential for accurate boring drilling, grinding, and milling operations
Construction :
  • Casting is the close Grey Iron dully stress relieved accurately machined and the ground surface provides tolerance well within 0.01 MM / 100 MM.
  • Precision ACME feed screw is running in a hot-stamped phosphor Bronze Nut thrust color for smooth operation and the minimum back lash
  • Single is one-way travel only.

Finish: Amazon Green



     SPECIFICATIONS
RANGE 6 x 6 Inches 8 x 8 Inches
Height (In mm) 57 62
Size of table (In mm) 150 x 150 200 x 200
Length (In mm) 300 350
Travel both ways (In mm) single single
T-slots size (In mm) 10 10
Weight In (Kgs) 18 19
Swivel Graduation - -
