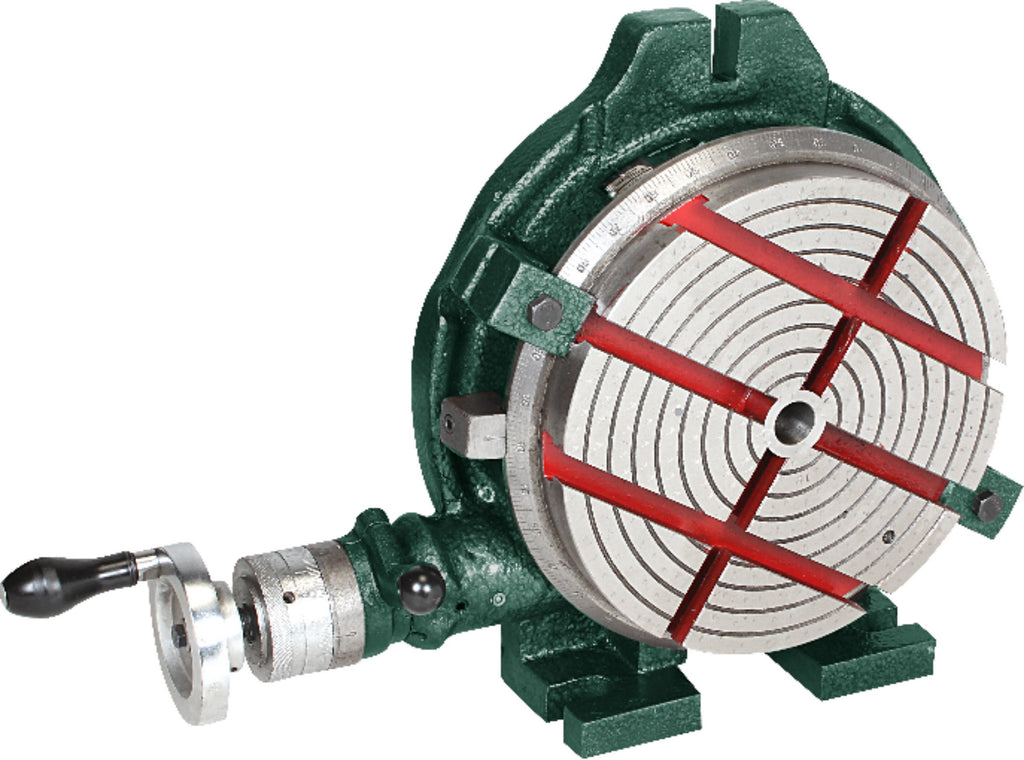

Universal Rotary milling Table (Horizontal & Vertical) - Apex Code 715E

Save 22%

Table Size: 4 Inches / 100mm
Price:
Rs. 7,059 Rs. 9,039

Tax included Shipping calculated at checkout

Description

Inspection :

  • Direct reading to 2 minutes for size 6",8" and 10" on hand
    wheel scale.
  • Direct reading to 1 minute for size 12",15",18" and 20" on
    hand wheel scale.
  • ACCURACY:- Maximum error 4 minutes of circular
    division using handwheels.
  • Table flat to within 0.01 mm / 100 mm.
  • Working surface rotates in its own plane to within 0.030
    mm.
  • Horizontal and Vertical supporting surface square with
    0.01mm/100 mm.
  • Centre bush bore is true to the table axis within 0.03 mm.
  • Maximum parallelism error through 360° rotation of the table
    is .025 mm.
  • The Base is provided with two-bolt slots in
  • 715E: Both horizontal slots in & Vertical mounting on the machine table.


Finish: Hammer tone mid-grey.



          SPECIFICATIONS
RANGE 6" 8" 10" 12" 15" 18" 20"
Dia of Table (In mm) 150 200 250 300 375 450 500
Table T-Slot Size (In mm)
10 13 13 16 16 20 20
Centre Bush Bore (morse taper)
2 3 3 3 3 4 4
Worm & Gear Ratio 02:12 02:12 02:12 01:20 01:20 01:20 01:20
Wheel Calibration (In minutes)
2 2 2 1 1 1 1
Height Overall (In mm) Vertical
240 300 365 425 530 620 620
715E Horizontal (In mm) 95 105 110 130 135 160 160
Weight (In Kgs) 16 27 42 65 100 175 187
