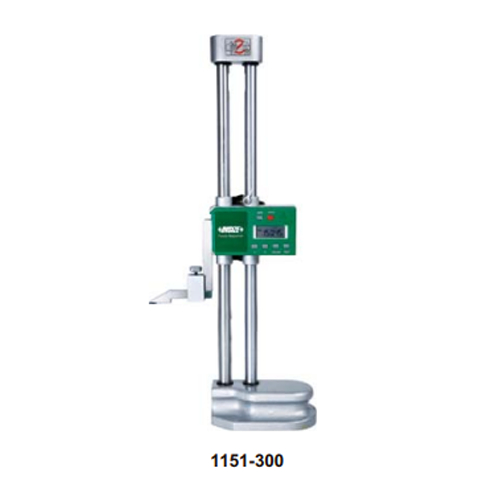

Digital Height Gauge (Double Column) -1151

Save 25%

Size: 1151-300 (300MM)
Price:
Rs. 30,220 Rs. 40,195

Tax included Shipping calculated at checkout

Description

Features:-
  • NON WATERPROOF
  • RESOLUTION : 0.01MM/0.001"
  • BUTTONS: ON/ OFF, ZERO, MM/INCH, PRESET (+/-), RESET, ABS/INC
  • ABS/INC IS FOR ABSOLUTE AND INCREMENTAL
  • CARBIDE TIPPED SCRIBER
  • MADE OF STAINLESS STEEL (EXCEPT THE BASE)
  • BATTERY LR44, DATA OUTPUT
  • WITH DRIVING WHEEL
  • SUPPLIED WITH DUST COVER
  • AVAILABLE WITH A DATA OUTPUT OPTION

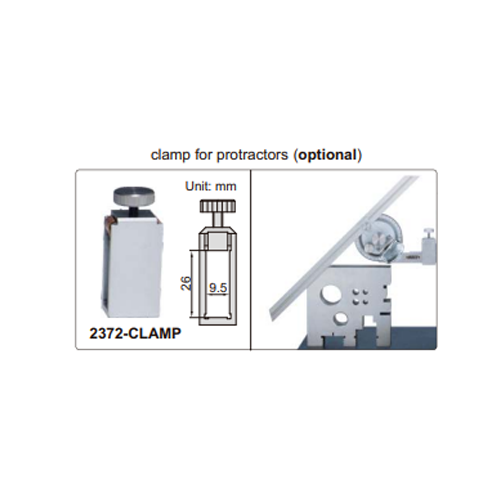

  • OPTIONAL ACCESSORIES: DATA OUTPUT CABLE, CLAMP FOR PROTRACTORS ( CODE: 2372-CLAMP)

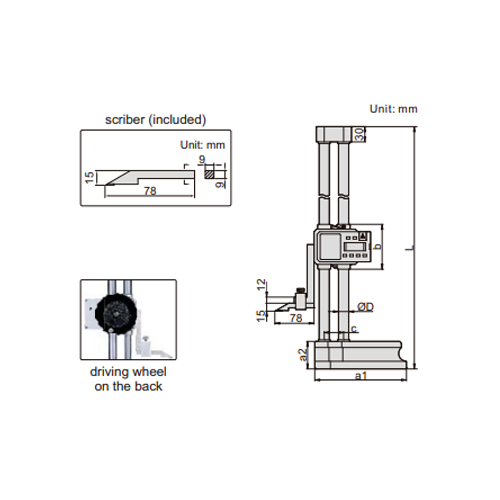

       SPECIFICATIONS
    Code Range Accuracy L a1 a2 b c ⌀D
    1151-300A
    0-300mm/0-12'' 0.04mm 475 135 43 84 33 15
    1151-450A 0-450mm/0-18'' 0.05mm 660 180 54 88 38 20
    1151-600A 0-600mm/0-24'' 0.05mm 810 180 54 88 38 20
