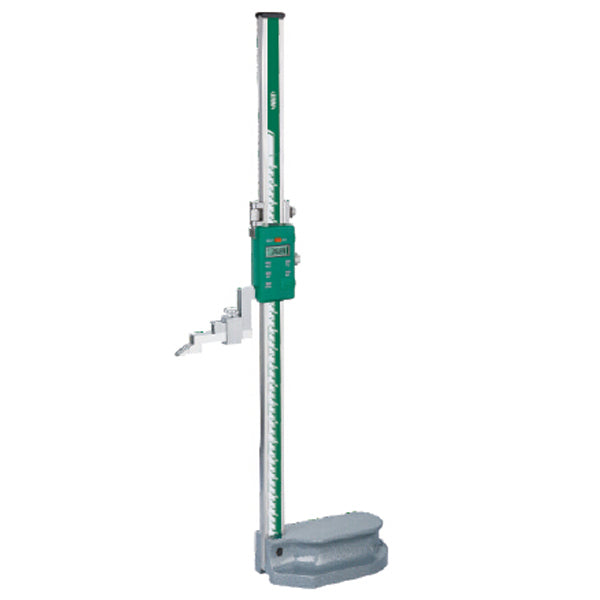

Digital Height Gauge (Economic Model) 1150

Save 25%

Size: 1150-300 (0-300MM)
Price:
Rs. 14,530 Rs. 19,325

Tax included Shipping calculated at checkout

Description

Features:-
  • Non waterproof

  • Resolution: 0.01mm/0.0005"

  • Buttons: on/off, zero, mm/inch, ABS/INC, data hold, TOL, set

  • ABS/INC is for absolute and incremental measurement

  • TOL is for tolerance measurement

  • Carbide tipped scriber

  •  Made of stainless steel (except the base)

  • LR44 battery, data output

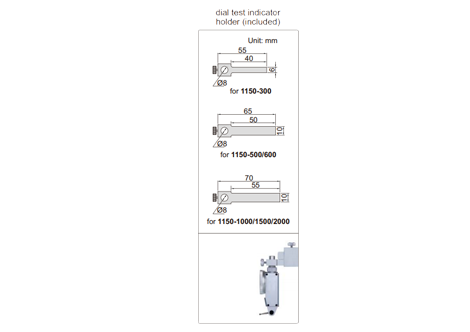

  • Supplied with dial test indicator holder

  • Supplied with dust cover (except 1150-1500/2000)

  • Optional accessory: data output cable

  • (code 7302-SPC7 page 13, keyboard format), wireless data transmission (transmitter code 7315-1150 need receiver page 6), clamp for protractors (code 2372-CLAMP, for 1150-300)

MEASURING RANGE 0-300MM / 0-12" 0-500MM / 0-20" 0-600MM / 0-24" 0-1000MM / 0-40" 0-1500M / 0-60" 0-2000M / 0-80"
CODE 1150-300 1150-500 1150-600 1150-1000 1150-1500 1150-2000
ACCURACY +/- +0.05MM +0.06MM +0.08MM +0.08MM +0.12MM +0.16MM
TYPE A A A B B B
OVERALL LENGTH (L) 470MM 720MM 820MM 1275MM 1790MM 2290MM
a1 135MM 180MM 180MM 250MM 280MM 280MM
a2 45MM 55MM 55MM 80MM 80MM 80MM
b 80MM 95MM 95MM 125MM 125MM 125MM
c1 76MM 103MM 103MM 110MM 110MM 110MM
c2 25MM 25MM 25MM 39MM 39MM 39MM
c3 10MM 12MM 12MM 15MM 15MM 15MM
d 23MM 30MM 30MM 50MM 50MM 50MM
e 6MM 10MM 10MM 10MM 10MM 10MM
f 8MM 12MM 12MM 15MM 15MM 15MM
