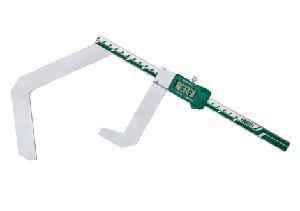

Digital V Shape Calipers (Non-Waterproof) - 1529

Save 25%

Size: 1529-3
Price:
Rs. 39,775 Rs. 52,900

Tax included Shipping calculated at checkout

Description

Features:-

  • Measure the outside diameter of odd number of flutes (such as taps, reamers, end mills and gears)
  • Direct reading, calculation is not required
  • Resolution: 0.01mm/0.0005''
  • Buttons: on/off, zero, mm/Inch, on/off, origin set
  • Battery LR44, automatic power off
  • After Automatic power off, move the digit unit to turn on power
  • Data Output
  • Made of stainless steel
  • Optional accessory : 50mm calibration cylinder (code 6316-50) data output cable (code 7302-SPC9)

DIRECT READING, CALCULATION IS NOT REQUIRED

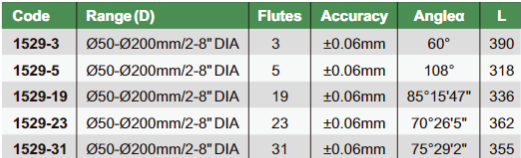

SPECIFICATIONS

Code 1529-3 1529-5 1529-19 1529-23 1529-31
Range (D) 50-200mm/2-8'' 50-200mm/2-8'' 50-200mm/2-8'' 50-200mm/2-8'' 50-200mm/2-8''
Flutes 3 5 19 23 31
Accuracy ±0.06mm ±0.06mm ±0.06mm ±0.06mm ±0.06mm
Angle α 60° 108° 85°15'47'' 70°26'5'' 75°29'2''
L 390 318 336 362 355
