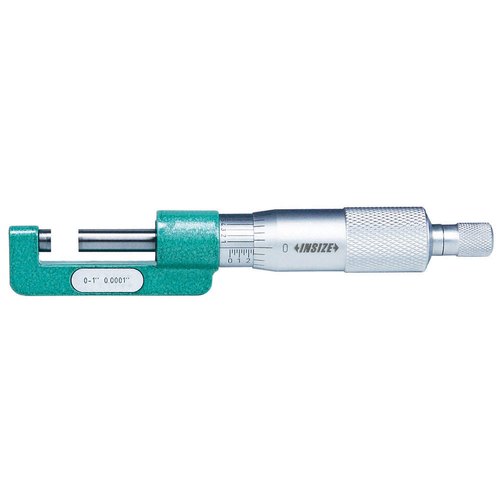

Hub Micrometers - 3292

Save 25%

Size: 0-25mm
Price:
Rs. 4,350 Rs. 5,785

Tax included Shipping calculated at checkout

Description

Features:-

  • Meet DIN863-3
  • Measure hub thickness and shoulder inside a bore
  • Graduation : 0.01mm
  • Ratchet stop
  • Carbide measuring faces
  • Supplied with setting standard (except 0-25mm)

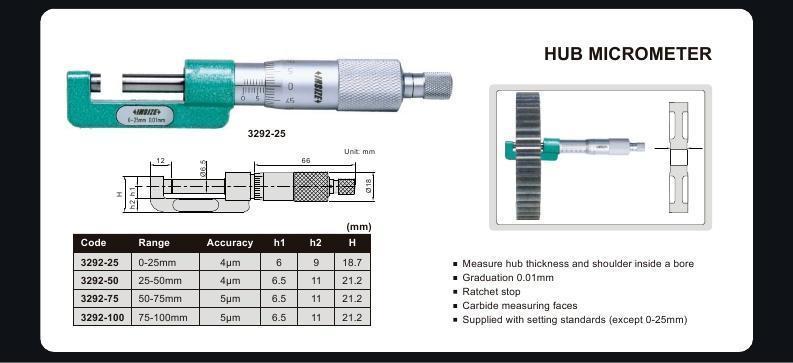

SPECIFICATIONS:-

Code Range Accuracy h1 h2 h3
3292-25 0-25mm 4µm 6 9 18.7
3292-50 25-50mm 4µm 6.5 11 21.2
3292-75 50-75mm 5µm 6.5 11 21.2
3292-100 75-100mm 5µm 6.5 11 21.2
