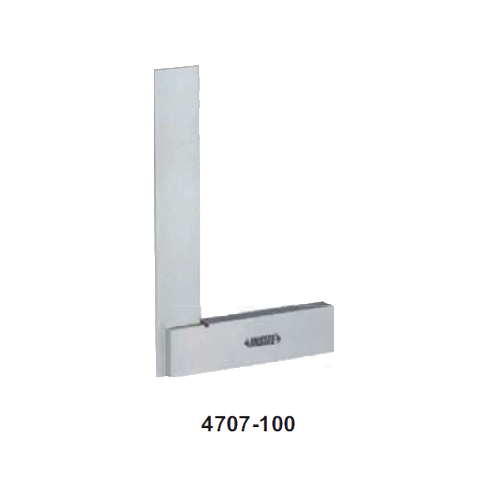

Machinist Square With Wide Base (Economic Model) - 4707

Save 22%

Size (LxW): 4707-50 (50x40MM)
Price:
Rs. 660 Rs. 844.80

Tax included Shipping calculated at checkout

Description

Features:-
  • DIN875 grade 2
  • Made of carton steel, no anti-rust treatment, not hardend
  • Attention : Low accuracy
  • Attention : No anti- rust treatment, not hardend

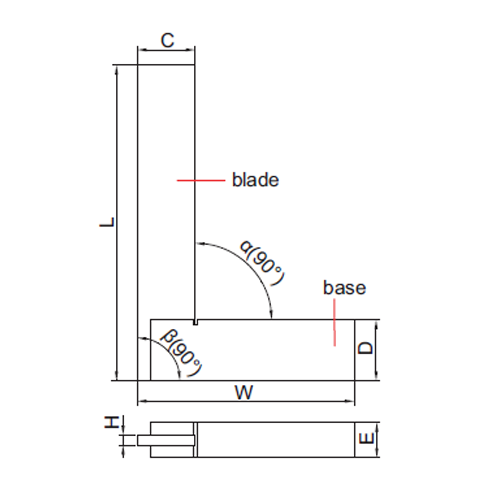

   SPECIFICATIONS
Code
Size (LxW)
Squareness
C
D
H
E
Inside (α) Outside (β)
4707-50 50x40mm 24μm 25μm 16 12 3 9
4707-100 100x70mm 28μm 30μm
19 19 3 12
4707-150 150x100mm 33μm 35μm 25 25 3 16
4707-250 250x165mm 42μm 45μm 30 32 4 19
4707-300 300x200mm 47μm 50μm 32 32 4 19
4707-400 400x250mm 56μm 60μm 38 38 5 22
