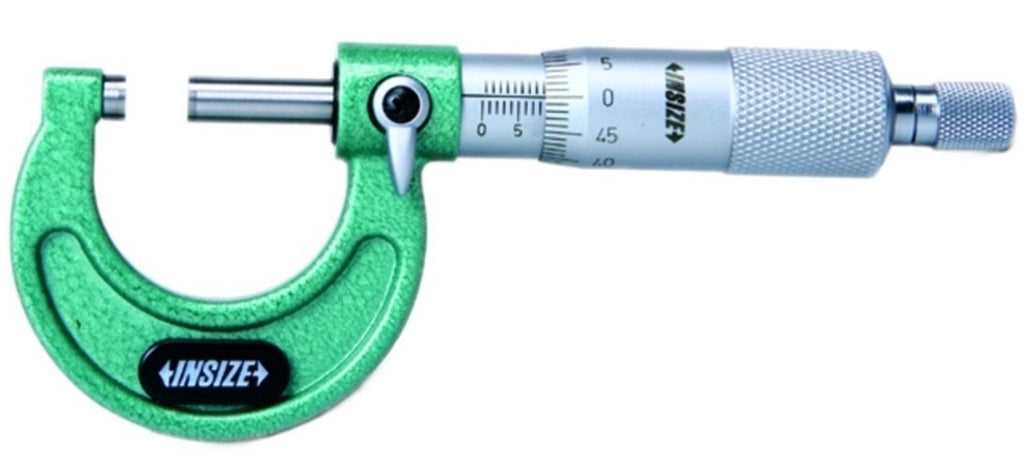

Outside Micrometer - 3203

Save 22%

Size: 3203-25A (0-25MM)
Price:
Rs. 1,475 Rs. 1,888

Tax included Shipping calculated at checkout

Description

FEATURES:-
  • GRADUATION: 0.01MM
  • CARBIDE MEASURING FACES
  • RATCHET STOP
  • INTERNATIONAL STANDARD DIN863-1
  • SUPPLIED WITH SETTING RING (EXCEPT 0-25'')
  • INSPECTION CERTIFICATE  TRACEABLE TO DKD LAB GERMANY

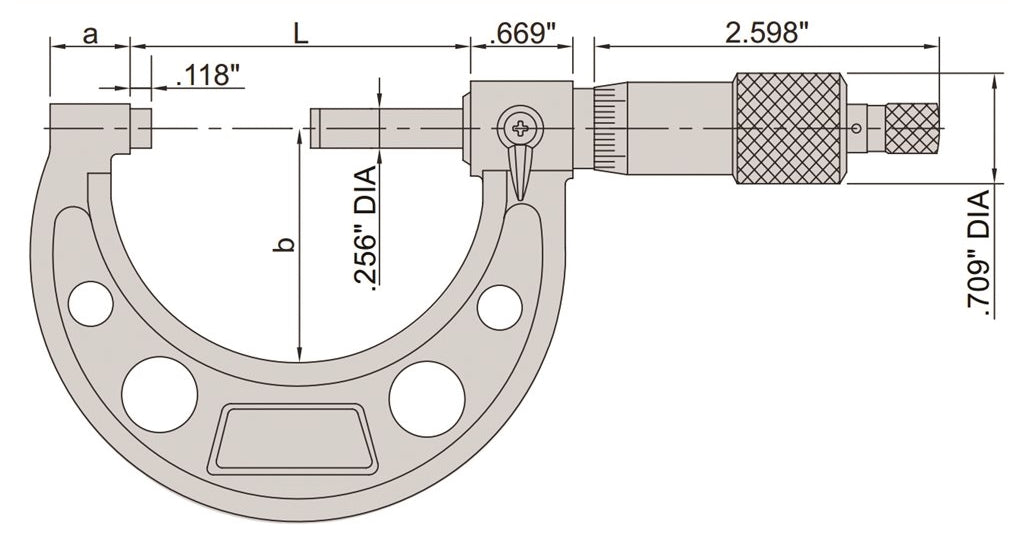

TITLE CODE RANGE ACCURACY LEAST COUNT L a b
Outside Micrometer (MM) 3203-25A 0-25mm +2μm 0.01MM 32 9 28
3203-50A 25-50mm +2μm 0.01MM 57 14 38
3203-75A 50-75mm +2μm 0.01MM 82 15 49
3203-100A 75-100mm +3μm 0.01MM 107 15 60
3203-125A 100-125mm +3μm 0.01MM 133 16.5 73
3203-150A 125-150mm +3μm 0.01MM 158 16.5 85

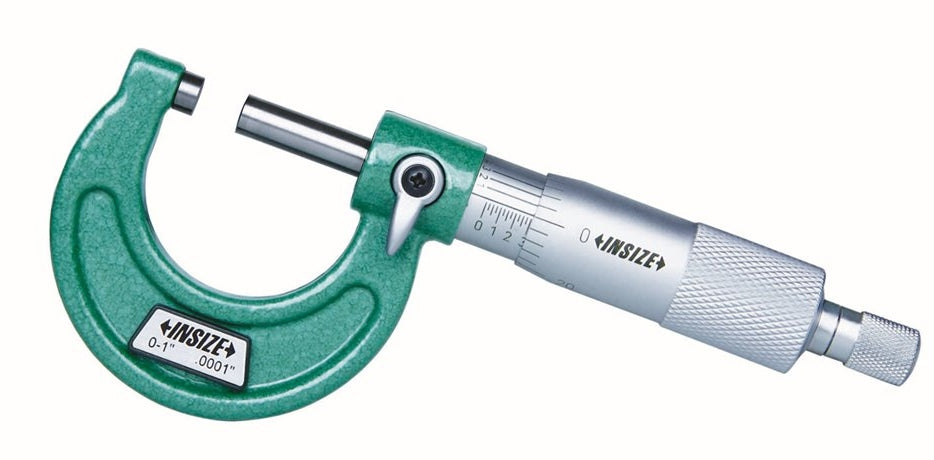

Outside Micrometer (INCHES) 3203-1A 0-1" +2μm 0.0001" 32 9 28
3203-2A 1-2" +2μm 0.0001" 57 14 38
3203-3A 2-3" +2μm 0.0001" 82 15 49
3203-4A 3-4" +3μm 0.0001" 107 15 60
3203-5A 4-5" +3μm 0.0001" 133 16.5 73
3203-6A 5-6" +3μm 0.0001" 158 16.5 85
