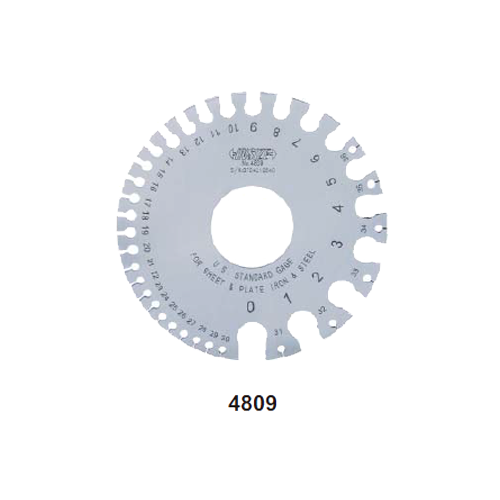

U.S Standard Sheet Metal Gauge - 4809

Save 25%

Variant: 4809
Price:
Rs. 1,213 Rs. 1,613

Tax included Shipping calculated at checkout

Description

Features:-
  • For gaging sheet metal, plate iron and steel.
  • Hardened to HRC50-57



No W
0 7.938mm/0.3125"
1 7.144mm/0.2813"
2 6.747mm/0.2656"
3 6.350mm/0.2500"
4 5.953mm/0.2344"
5 5.556mm/0.2188"
6 5.159mm/0.2031"
7 4.763mm/0.1875"
8 4.366mm/0.1719"
9 3.969mm/0.1563"
10 3.572mm/0.1406"
11 3.175mm/0.1250"
12 2.778mm/0.1094'
13 2.381mm/0.0938"
14 1.984mm/0.0781"
15 1.786mm/0.0703"
16 1.588mm/0.0625"
17 1.429mm/0.0563"
18 1.270mm/0.0500"
19 1.111mm/0.0438"
20 0.953mm/0.0375"
21 0.873mm/0.0344"
22 0.794mm/0.0313"
23 0.714mm/0.0281"
24 0.635mm/0.0250"
25 0.556mm/0.0219"
26 0.476mm/0.0188"
27 0.437mm/0.0172"
28 0.397mm/0.0156"
29 0.357mm/0.0141"
30 0.318mm/0.0125"
31 0.278mm/0.0109"
32 0.258mm/0.0102"
33 0.238mm/0.0094"
34 0.218mm/0.0086"
35 0.198mm/0.0078"
36 0.179mm/0.0070"

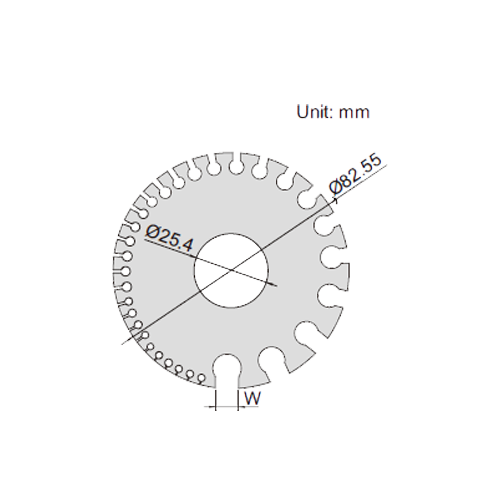

SPECIFICATIONS
Code Range
4809
0-36(7.938-0.179mm/0.3125-0.0070")
