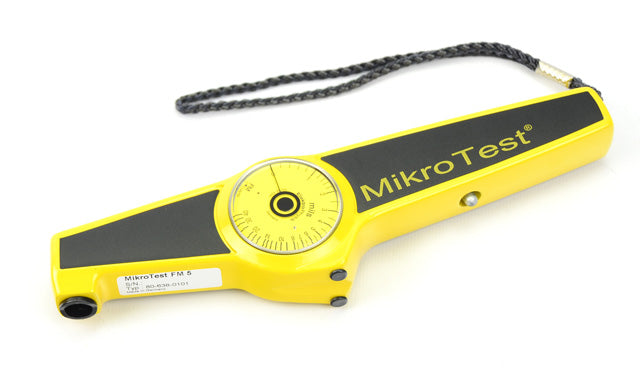

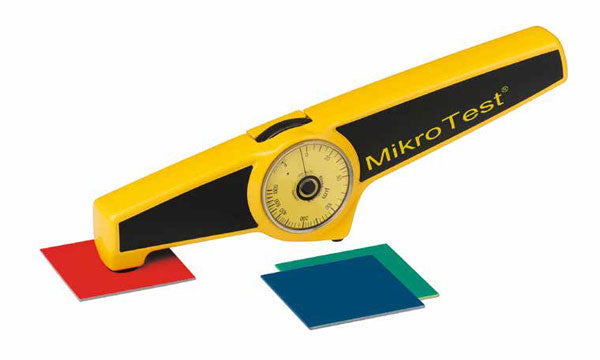

MicroTest Coating Thickness Gauge - G6

Save 50%

Price:
Rs. 61,999 Rs. 124,000

Tax included Shipping calculated at checkout

Description

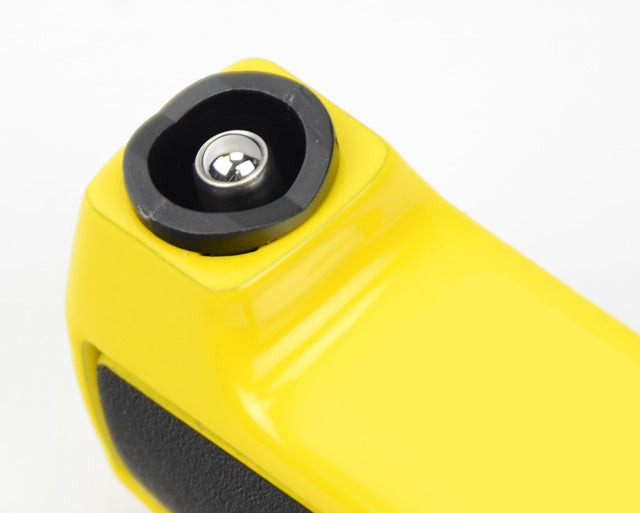

The measurement of the coating thickness is based on magnetic attraction. The attractive force is related to the distance between a permanent magnet and a steel substrate. This distance represents the thickness of the coating under measure. The magnet is lifted from the surface by means of a spring connected to the magnet arm. The force needed to lift the magnet is directly related to the angle of rotation of the torsion spring.

Features :-

  • Highest accuracy with simplest operation
  • No calibration required
  • Simple set-up and measurement
  • All gauges operate without power or battery
  • One point measurement
  • Metal Housing provides protection from mechanical shocks
  • Metal Housing and measuring system is resistant to solvents
  • Automatic models control release of magnet for highest accuracy and repeatability
