Digital Outside Micrometer - 293

Save 50%

Code: 293-821 (0-25MM)
Price:
Rs. 8,099 Rs. 16,200

Tax included Shipping calculated at checkout

Description

 SPECIFICATIONS


TITLE CODE RANGE LEAST COUNT ACCURACY SCALE
Digital Outside Micrometer 293-240  0-25MM 0.001MM ±1µm MM
(IP65)
293-241 25-50MM 0.001MM ±1µm MM
(IP65)
293-242 50-75MM 0.001MM ±1µm MM
(IP65)
293-243 75-100MM 0.001MM ±2µm MM
(IP65)
293-821 0-25MM 0.001MM ±2µm MM
293-831 0-25MM / 0-1" 0.001MM ±2µm / ±0001*

INCH / MM

(MM/INCH)
293-100 0-25MM 0.0001MM ±0.5µm MM
(HIGH ACCURACY)





TECHNICAL DATA:-

Accuracy: Refer to the list of specifications.(excluding quantizing error)
Resolution: 0.001mm or .0001* / 0.0001mm
Flatness: 0.6µm / .000024''
Parallelism:
5µm/.0002" for models up to 375mm/15"
6µm/.00024" for models up to 475mm/19"
7µm/.00028" for models over 500mm/20"
Measuring faces: Carbide
Display: LCD
Battery: SR44 (1 pc.), 938882
Battery life: Approx.1.8 years under normal use



FEATURES:-

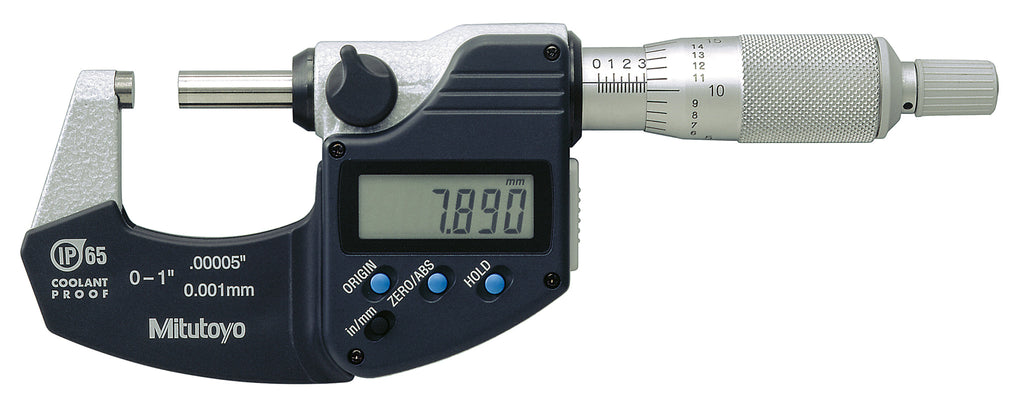

For Model 293-240 , 293-241 , 293-242 , 293-243

  • IP65 protection level, enabling use in environment exposed to cutting oil
  • Measurement data output function is available with a water - resistant connection cable
  • Oil-resistant materials are used in all plastic components.
  • ±1µm instrumental error (75mm/3'' or less range models)
  • Auto power ON/OFF function
  • Certificate of inspection* is included. (50mm/2'' or less range models)

*This certificate is understand and therefore cannot be used as a calibration certificate

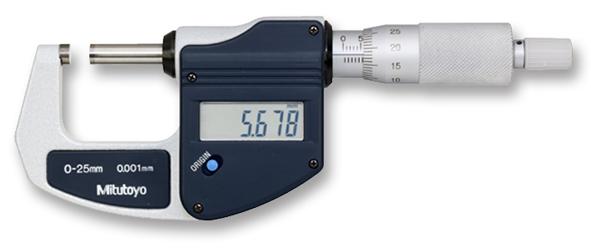

For Model 293-821 , 293-831

  • A ratchet stop or friction thimble for a constant measuring force
  • Provided only with an origin -set button for easy origin setting
  • ±1µm instrumental error (75mm/3'' or less range models)
  • Auto power ON/OFF function
  • Certificate of inspection* is included. (50mm/2'' or less range models)

*This certificate is understand and therefore cannot be used as a calibration certificate

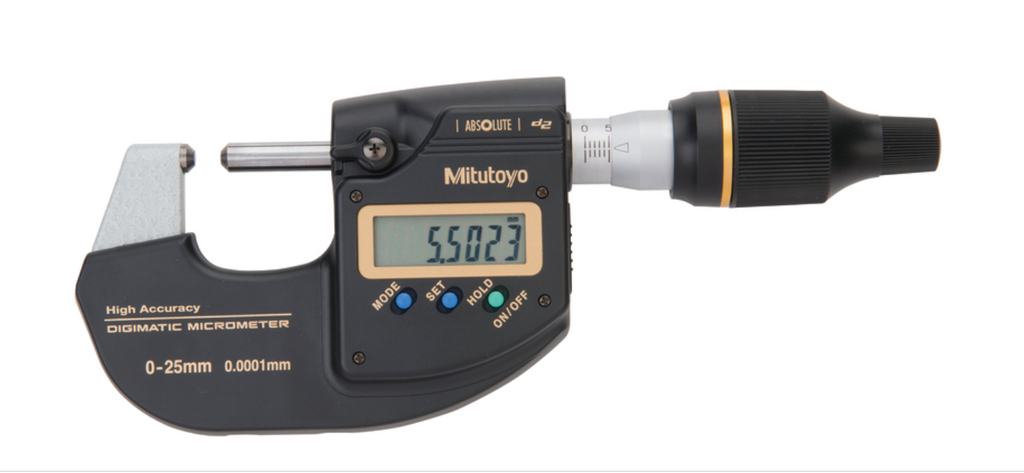

For Model 293-100

  • High Accuracy model with Least count of 0.0001mm
  • A ratchet stop or friction thimble for a constant measuring force
  • Provided only with an origin -set button for easy origin setting
  • ±1µm instrumental error (75mm/3'' or less range models)
  • Auto power ON/OFF function
  • Certificate of inspection* is included. (50mm/2'' or less range models)

*This certificate is understand and therefore cannot be used as a calibration certificate



FUNCTIONS:-

  • Origin-set, 2-point preset (over 100mm), Zero-setting,
  • Function look (over 100mm) Automatic power ON/OFF, data hold, data output, inch/mm conversation (inch/mm models)
  • Alarm: Low voltage, counting value composition error
