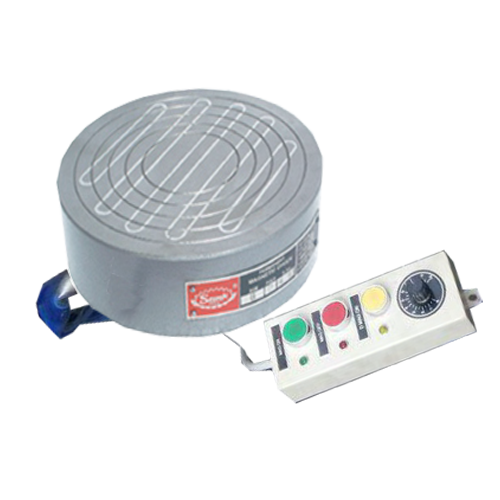

Round Electro Magnetic Chuck Close Pole (Pole Pitch 15 + 2.5 + 10 + 2.5 = 30 MM)

Save 30%

Size: 8''
Price:
Rs. 26,440 Rs. 37,800

Tax included Shipping calculated at checkout

Description

  • HOLDING DEVICE FOR ROTARY SURFACE GRINDING AND ALSO FOR LATHE & CYLINDRICAL GRINDING.
  • EACH POLE IS HAVING SEPARATE COIL AS SUCH VERY STRONG & EVEN MAGNETIC FLUX IS GENERATED.
  • MAG D- MAG WITH VARIABLE CONTROL UNIT ALLOWS TO NEUTRALIZE THE RESIDUAL MAGNETISM PRECISELY.
  • MAGNETIC PULL IS 20-40% MORE THAN IS SPECIFICATION
  • THE CHUCK IS TESTED FOR SLIPPERING FORCE, WATERPROOF TEST.
  • TEMPERATURE RISE TEST. ELECTRICAL & DEMAGNETIZING TEST.



SPECIFICATIONS
CODE NO. SIZE IN (INCHES) SIZE IN MM DIA X HEIGHT
NUMBER OF POLE
REMCCL-8 8'' 200 x 110 5
REMCCL-10 10'' 250 x 110 6
REMCCL-12 12'' 300 x 110 8
REMCCL-14 14'' 350 x 110 9
REMCCL-16 16'' 400 x 110 10
REMCCL-18 18'' 450 x 110 12
REMCCL-20 20'' 500 x110 14
REMCCL-24 24'' 600 x 110 18
REMCCL-28 28'' 700 x 110 20
