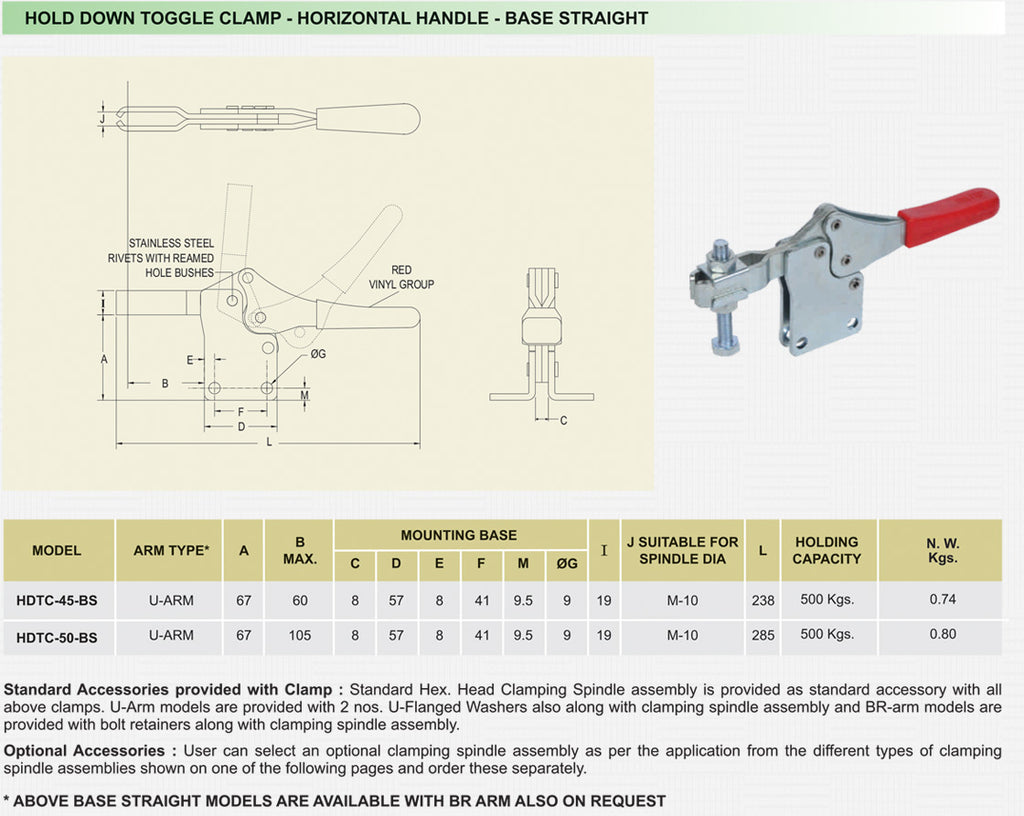

Hold Down Toggle Clamp - Horizontal Handle - Base Straight : HDTC

Save 27%

Variant: HDTC-45-BS
Price:
Rs. 705 Rs. 966

Tax included Shipping calculated at checkout

Description

Standard Accessories :  provided with clamp : Standard Hex. Head Clamping Spindle assembly is provided as standard accessory with all above clamps. U- Arm models are provided with  2 nos. U-Flange Washers also along with clamping spindle assembly and BR - arm models are provided with bolt retainers along with clamping spindle assembly.

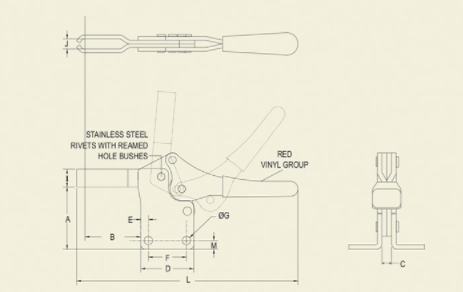

MODEL HDTC-45-BS HDTC-50-BS
ARM TYPE* U-arm U-arm
A 67 67
B MAX. 60 105
Mounting Base
C 8 8
D 57 57
E 8 8
F 41 41
M 9.5 9.5
⌀G 9 9
I 19 19
J Suitable For Spindle Dia M-10 M-10
L 238 285
Holding Capacity 500 kgs 500 kgs
N.W Kgs 0.74 0.8
