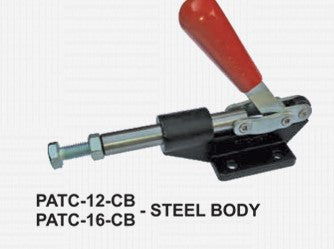

Push / Pull Action Toggle Clamp - Centre Base : PATC

Save 27%

Variant: PATC-12-CB
Price:
Rs. 709 Rs. 971

Tax included Shipping calculated at checkout

Description

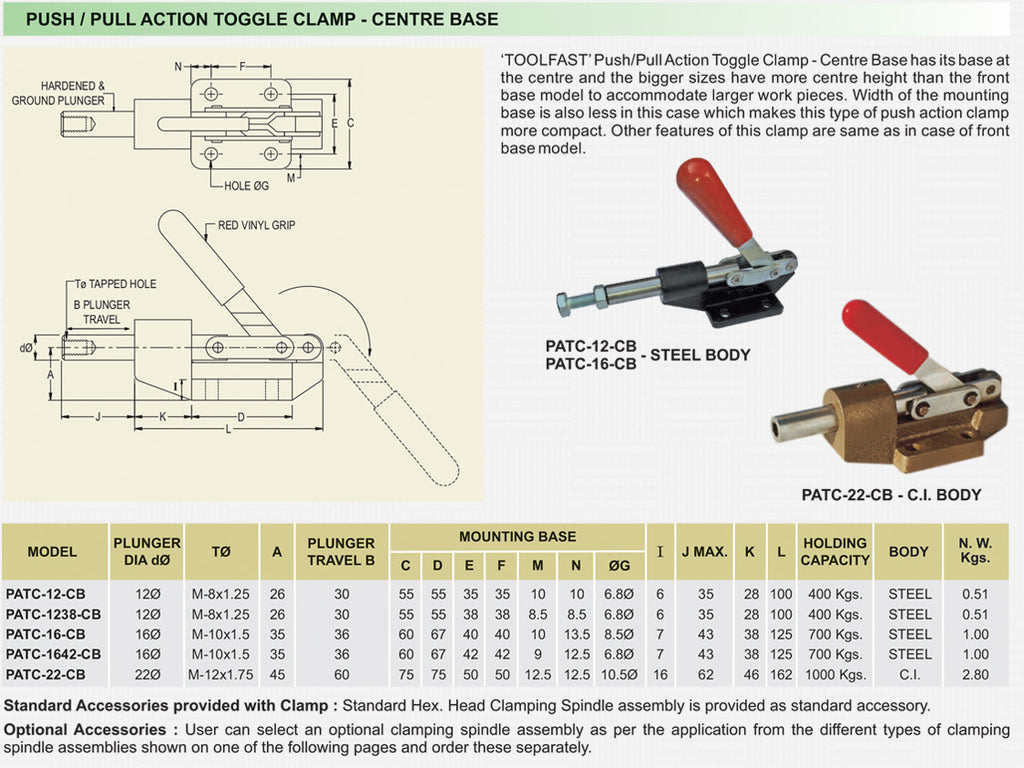

"TOOL FAST"  Push/Pull Action Toggle Clamp - Center base has its base at the center and the bigger sizes have more center height than the front base model to accommodate larger work pieces. Width of the mounting base is also less in this case which makes this type of push action clamp more compact. Other features of this clamp are same as in case of front base model.



Standard Accessories :  provided with clamp : Standard Hex. Head Clamping Spindle assembly is provided as standard accessory.



Optional Accessories : User can select an optional clamping spindle assembly as per the application from the different types of clamping spindle assemblies shown on one of the following pages and order these separately.





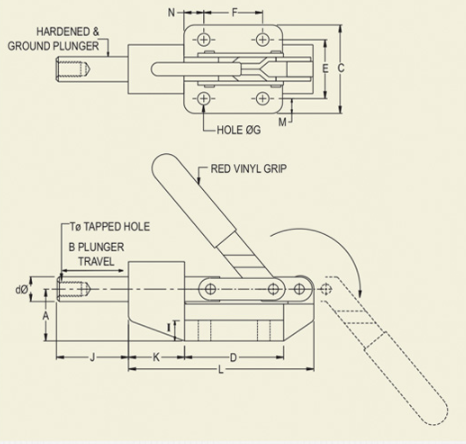

Model
PATC-12-CB
PATC-1238-CB
PATC-16-CB
PATC-1642-CB
PATC-22-CB
Plunger Dia d⌀
12
12
16
16
22
A
M-8 X 1.25
M-8 X 1.25
M-10 X1.5
M-10 X1.5
M-12 X1.75
T⌀
26
26
35
35
45
Plunger Travel B
30
30
36
36
60
Mounting Base
C
30
30
36
60
75
D
55
55
67
67
75`
E
35
38
40
42
50
F
35
38
40
42
50
M
10
8.5
10
9
12.5
N
10
8.5
13.5
12.5
12.5
⌀G
6.8⌀
6.8⌀
8.5⌀
6.8⌀
10.5⌀
I
6
6
7
7
16
J Max.
35
35
43
43
62
K
28
28
38
38
46
L
100
100
125
125
162
Holding Capacity
400KGS
400KGS
700KGS
700KGS
1000KGS
Body
Steel
Steel Steel Steel
C.I
N.W Kgs
0.51
0.51
1
1
2.8
