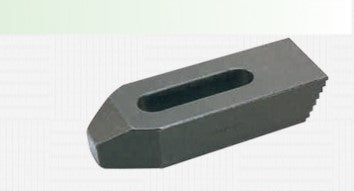

Stepped Strap Clamp : TSSC

Save 27%

Title: TSSC-10-60
Price:
Rs. 275 Rs. 377

Tax included Shipping calculated at checkout

Description

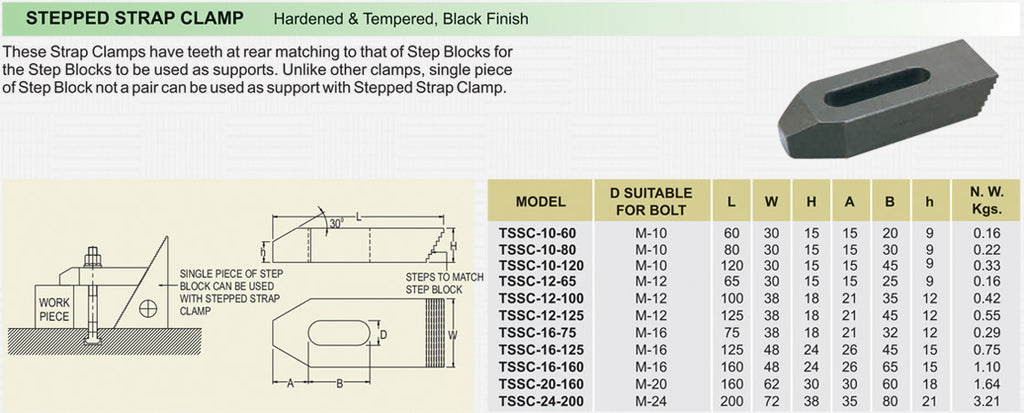

  • These strap clamps have teeth at rear matching to that of step blocks for the step blocks to be used as supports.
  • Unlike other clamps, single piece of step block not a pair can be used as support with stepped strap clamp.

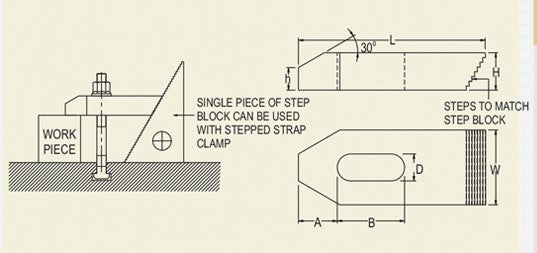

  SPECIFICATIONS
Model
D Suitable for bolt
L
W
H
A
B
h
N.W. Kgs
TSSC-10-60
M-10
60
30
15
15
20
9
0.16
TSSC-10-80
M-10
80
30
15
15
30
9
0.22
TSSC-10-120
M-10
120
30
15
15
45
9
0.33
TSSC-12-65
M-12
65
30
15
15
25
9
0.16
TSSC-12-100
M-12
100
38
21
21
35
12
0.42
TSSC-12-125
M-12
125
38
21
21
45
12
0.52
TSSC-16-75
M-16
75
38
21
21
32
12
0.29
TSSC-16-125
M-16
125
48
26
26
45
15
0.75
TSSC-16-160
M-16
160
48
26
26
65
15
1.1
TSSC-20-160
M-20
160
62
30
30
60
18
1.64
TSSC-24-200
M-24
200
72
35
35
80
21
3.21
