Universal Strap Clamp : USC

Save 27%

Size: USC-12(a)
Price:
Rs. 935 Rs. 1,281

Tax included Shipping calculated at checkout

Description

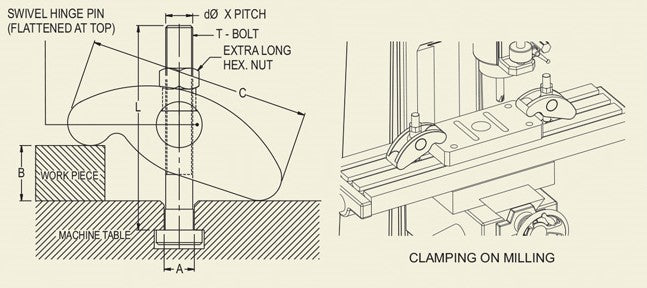

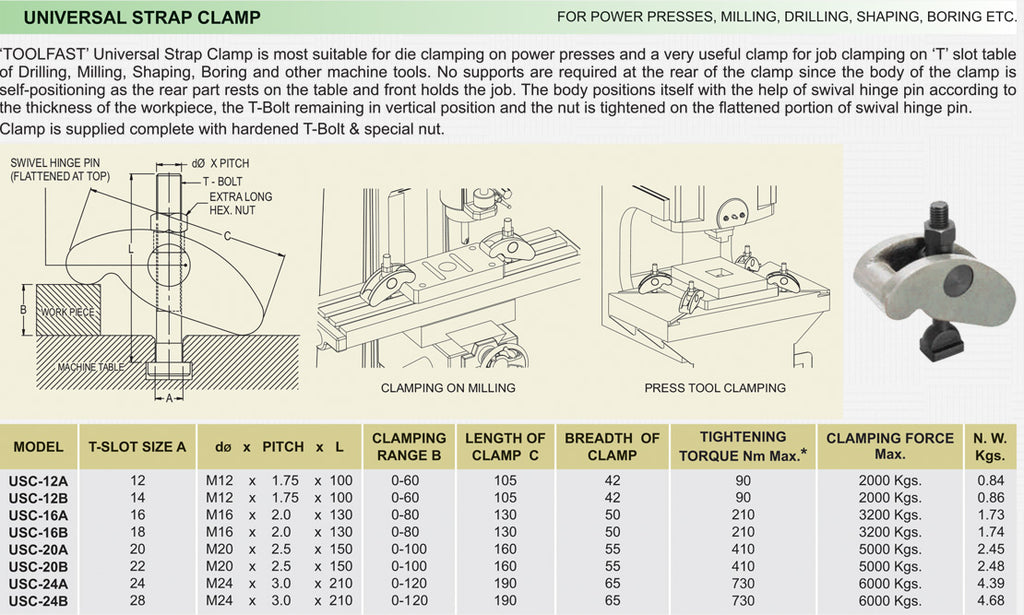

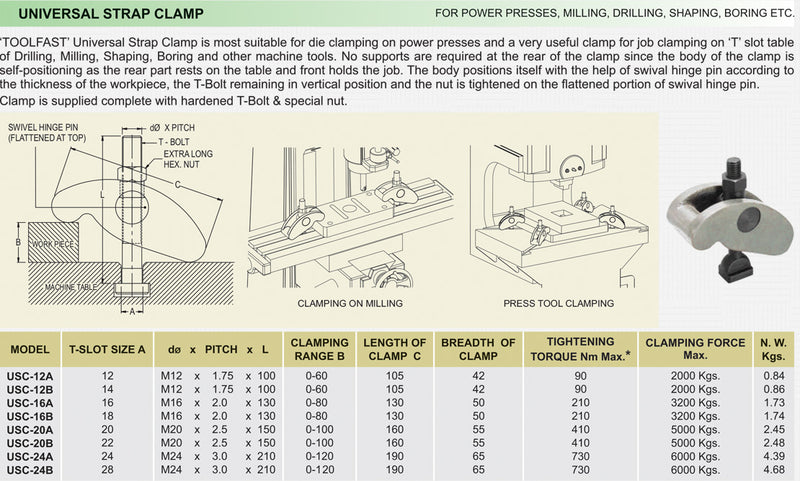

  • Tool fast universal strap clamp is most suitable for die clamping on power presses.

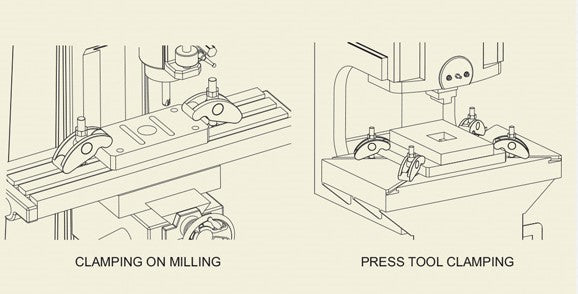

  • A very useful clamp for job clamping on 'T' slot table of drilling, milling shaping,boring and other machine tools.
  • No supports are required at the rear of the clamp since the body of the clamp is self positioning as the rear rests on the table & front holds the job.
  • Clamp is supplied complete with hardened T-Bolt & special nut.
  • The body positions itself with the help of swival hinge pin according to the thickness of the work piece.
     SPECIFICATIONS
Model USC-12A USC-12B USC-16A USC-16B USC-20A USC-20B USC-24A USC-24B
T-Slot Size A 12 14 16 18 20 22 24 28
dø × Pitch × L M12 × 1.75 ×100 M12 × 1.75 ×100 M16 × 2.0 ×130 M16 × 2.0 ×130 M20 × 2.5 ×150 M20 × 2.5 ×150 M24 × 3.0 × 210 M24 × 3.0 × 210
Clamping Range B 0-60 0-60 0-80 0-80 0-100 0-100 0-120 0-120
Length of Clamp C 105 105 130 130 160 160 190 190
Breadth of Clamp 42 42 50 50 55 55 65 65
Tightening Torque Nm Max 90 90 210 210 410 410 730 730
Clamping Force Max 2000 Kgs 2000 Kgs 3200 Kgs 3200 Kgs 5000 Kgs 5000 Kgs 6000 Kgs 6000 Kgs
N.W (Kgs.) 0.84 0.86 1.73 1.74 2.45 2.48 4.39 4.68
