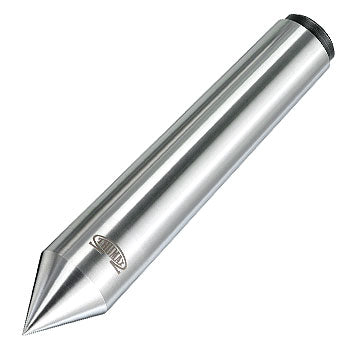

Dead Center : Plain

Save 40%

Shank Taper: MT-1
Price:
Rs. 230 Rs. 384

Tax included Shipping calculated at checkout

Description

  • SMALL SIZE TAPER UPTO MT-4 MADE FROM BEARING STEEL EN-31 AND THROUGH HARDENED TO 58-60 HRC
  • BIG SIZE TAPERS FROM MT-5 UPWARDS MADE FROM 20MnCr5 AND CASE HARDENED TO 58-60 HRC.
  • BROADLY CONFIRMS  TO IS: 2289 - 1976 (EQUIVALENT TO DIN: 806 - 1961 / ISO: 298)
  • PRECISION GROUND.
  • TIP RUNOUT WITHIN 0.015MM W.R.T. TAPER.
  • STANDARD POINT ANGLE 60° (OTHER ANGLES LIKE 75°/90° ETC. AGAINST REQUEST)

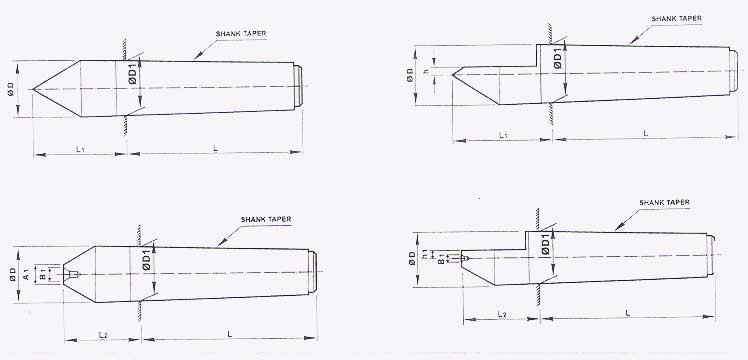

SPECIFICATIONS
SHANK TAPER
L mm
L1 mm
L 2 mm
∅ D mm
D 1 mm
h mm
h 1 mm
A 1 mm
B 1 mm
MT - 1
53.5
26.5
21.5
12.2
12.065
2
3
5.5
2.5
MT - 2
64
36
29
18
17.78
2.6
3.5
8
4
MT - 3
81
44
36
24.1
23.825
3.5
4.5
9
5
MT - 4
102.5
57.5
48
31.6
31.267
5.2
5.5
11
6
MT - 5
129.5
70.5
58.5
44.7
44.399
11.7
6.5
14
8
MT - 6
182
88
73
63.8
63.348
10.1
8.5
17
11
