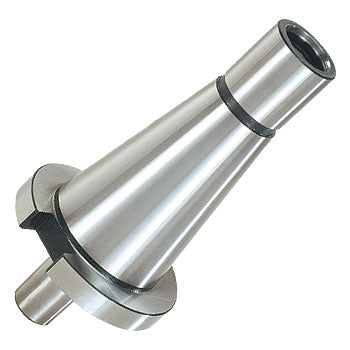

Drill Chuck Arbour (In ISO Taper)

Save 40%

Size: ISO - 30 x JT - 2S
Price:
Rs. 1,615 Rs. 2,697

Tax included Shipping calculated at checkout

Description



  • MADE ROM 20MnCr5 & CASE HARDENED TO 55-58 HRc APPROX.



SPECIFICATIONS

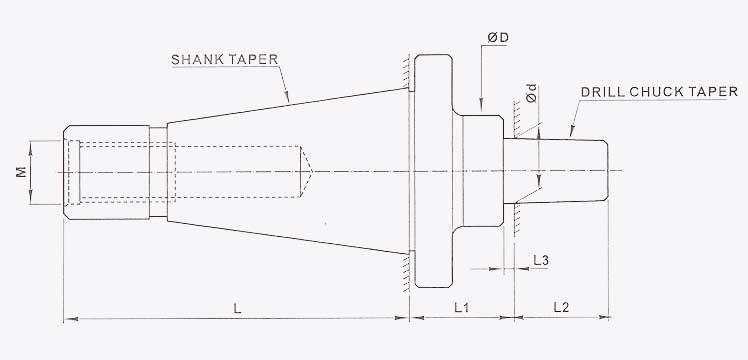

MODEL NO. SHANK TAPER SUITABLE FOR COLLETDRILL CHUCK TAPER L MM L1 MM L 2 MM L 3 MM ∅d mm ∅D mm M
ISO - 30 x JT - 2S ISO - 30 JT-2 68.4 29.4 19.05 3.5 13.94 30 M12
ISO - 30 x JT - 3 ISO - 30 JT-3 68.4 28.6 30.96 5 20.599 35 M12
ISO - 30 x JT - 6 ISO - 30 JT-6 68.4 26.4 24.5 3.8 17.17 30 M12
ISO - 30 x B16 ISO - 30 B16 68.4 27.6 24000 5 15.733 30 M12
ISO - 30 x B18 ISO - 30 B18 68.4 28.6 32 5 17.78 35 M12
ISO - 40 x JT - 2S ISO - 40 JT-2 93.4 31.4 19.05 3.5 13.94 30 M16
ISO - 40 x JT - 3 ISO - 40 JT-3 93.4 30.6 30.96 5 20.599 35 M16
ISO - 40 x JT - 6 ISO - 40 JT-6 93.4 28.4 24.5 3.8 17.17 30 M16
ISO - 40 x B16 ISO - 40 B16 93.4 29.6 24000 5 15.733 30 M16
ISO - 40 x B18 ISO - 40 B18 93.4 30.6 32 5 17.78 35 M16
ISO - 50 x JT - 2S ISO - 50 JT-2 123.8 33.4 19.05 3.5 13.94 30 M24
ISO - 50 x JT - 3 ISO - 50 JT-3 123.8 32.6 30.96 5 20.599 35 M24
ISO - 50 x JT - 6 ISO - 50 JT-6 123.8 30.4 24.5 3.8 17.17 30 M24
ISO - 50 x B16 ISO - 50 B16 123.8 31.6 24 5 15.733 30 M24
ISO - 50 x B18 ISO - 50 B18 123.8 31.6 32 5 17.78 35 M24
