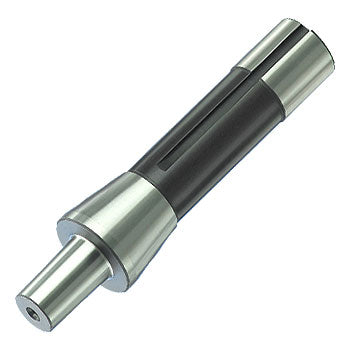

Drill Chuck Arbour (In R8 Taper)

Save 40%

Size: R8 x JT-2S
Price:
Rs. 1,330 Rs. 2,221

Tax included Shipping calculated at checkout

Description

  • MADE FROM 20MnCr5 & CASE HARDENED TO 55-58 HRc APPROX.




      SPECIFICATIONS

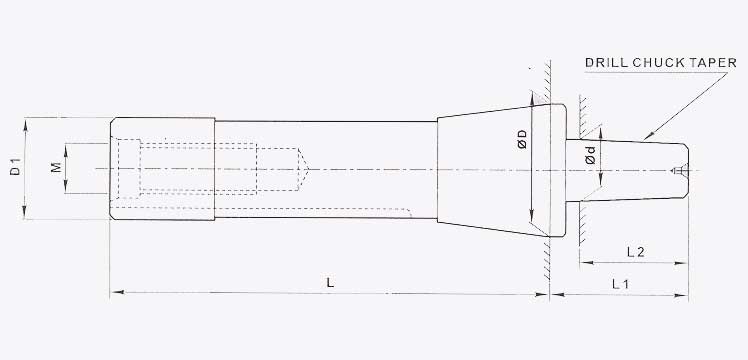

MODEL NO. DRILL CHUCK TAPER ∅D mm ∅D1 mm ∅d mm L MM L1 MM L2 MM M
R8 X JT-2 JT -2 31.75 24.1 13.94 102.3 26.2 19.05
M12 X 1.5 OR 7/16'' UNF
R8 X JT-6 JT-6 31.75 24.1 17.17 102.3 33.2 24.5
R8 X JT-3 JT-3 31.75 24.1 20.599 102.3 39.7 30.96
