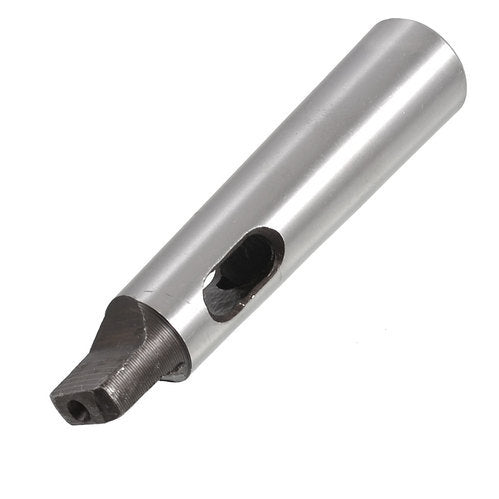

Drill Sleeve

Save 27%

Size: MT0 - MT1
Price:
Rs. 437 Rs. 595

Tax included Shipping calculated at checkout

Description

  • MADE FROM 20MnCr5. CASE HARDENED TO 55-58HRc.
  • AS PER IS : 6702 - 1972 (EQUIVALENT TO DIN : 2185 - 1972 & ISO : 238 - 1974)
  • PRECISION GROUND EXTERNALLY & INTERNALLY
  • CONCENTRICITY WITHIN. 015MM



    SPECIFICATIONS

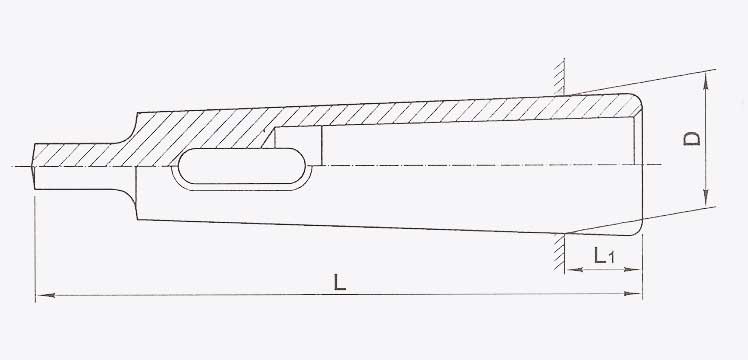

MODEL No. INNER M.T. OUTER M.T. L L 1 D

WEIGHT KG.

MT 0-1 0 1 80 14 12.065 0.04
MT 1-2 1 2 92 17 17.78 0.1
MT 1-3 1 3 99 5 23.825 0.215
MT 1-4 1 4 124 6.5 31.267 0.515
MT 1-5 1 5 156 6.5 44.399 1.46
MT 1-6 1 5 218 8 63.348 4.6
MT 2-3 2 3 112 18 23.825 0.185
MT 2-4 2 4 124 6.5 31.267 0.445
MT 2-5 2 5 156 6.5 44.399 1.41
MT 2-6 2 6 218 8 63.348 4.7
MT 3-4 3 4 140 22.5 31.267 0.38
MT 3-5 3 5 156 6.5 44.399 1.23
MT 3-6 3 6 218 8 63.348 4.4
MT 4-5 4 5 171 21.5 44.399 1.1
MT 4-6 4 6 218 8 63.348 4
MT 5-6 5 6 218 8 63.348 3.1
MT 5-7 5 7 295 9.5 83.058 8.7
MT 6-7 6 7 295 9.5 83.058 5.8
