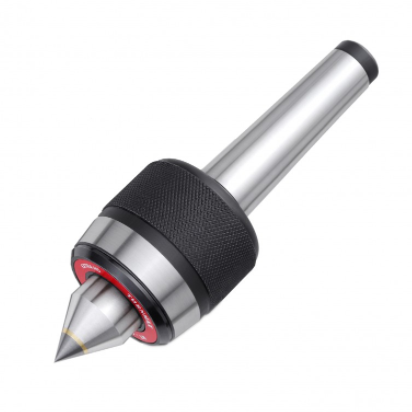

Revolving Center : Standard (Lathe , Carbide Tipped Point)

Save 40%

Size: MT-1
Price:
Rs. 2,470 Rs. 4,125

Tax included Shipping calculated at checkout

Description


CARBIDE TIPPED

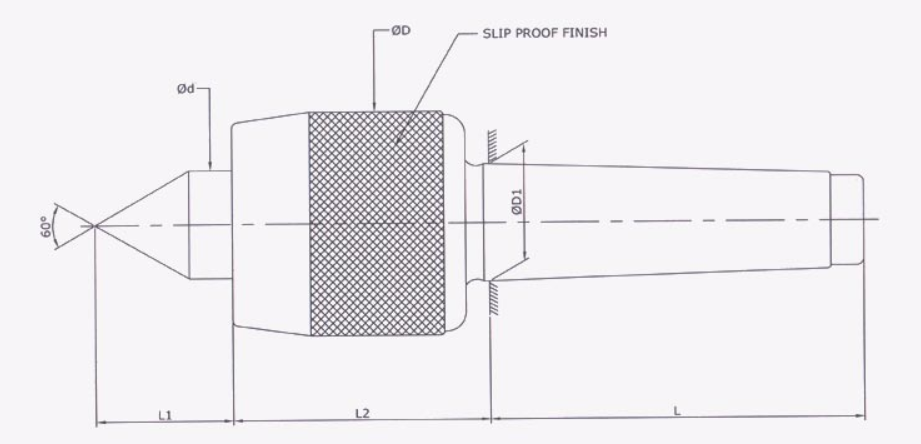

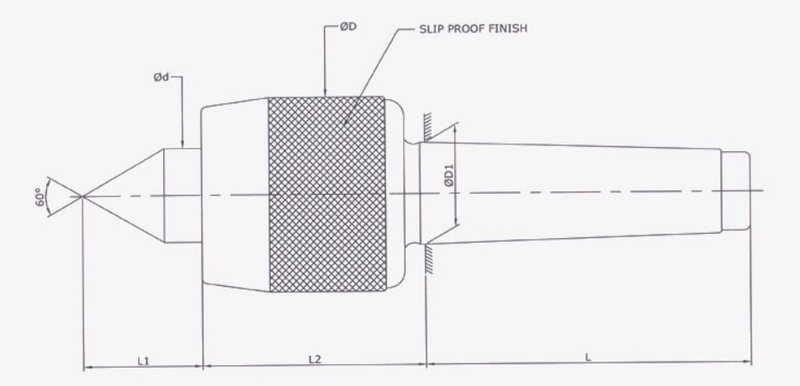

SPECIFICATIONS
MODEL No. Model SHANK TAPER Ød mm ØD mm ØD1 mm L1mm L2mm Lmm Max Job Wt.kg Conc.Error mm
RC MT1 STD standard MT-1 18 46.5 12.065 26 51 53.5 25 0.015
RC MT2 STD standard MT-2 23 50 17.78 31 61 64 50 0.015
RC MT3 STD standard MT-3 30 62 23.825 38 70 81 75 0.015
RC MT4 STD standard MT-4 30 62 31.267 38 73 102.5 100 0.015
RC MT5 STD standard MT-5 34 68 44.399 42 78 129.5 150 0.015
RC MT6 STD standard MT-6 50 105 63.348 58 91 182.5 200 0.015
