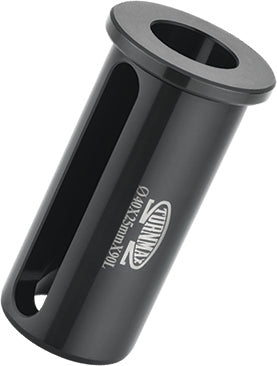

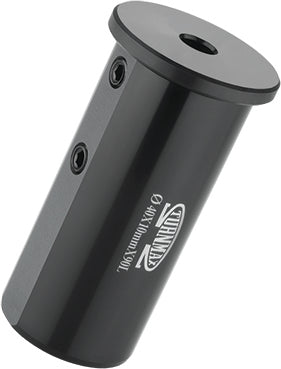

Turret Sleeve Universal Model (Cylindrical Bore)

Save 40%

OD ∅D MM x Bore ∅D MM: 32MM x 8MM
Price:
Rs. 535 Rs. 893

Tax included Shipping calculated at checkout

Description





SPECIFICATIONS
Part No. OD ∅D mm Bore ∅D mm ∅D1 mm W mm L1 mm L2 mm L3 mm L4 mm M Thread Fig
TSL 16x8 16 8 22 - 5 40 - - M4 2
TSL 16x10 16 10 22 7 5 40 32 3 - 1
TSL 20x8 20 8 26 - 5 50 - - M5 2
TSL 20x10 20 10 26 - 5 50 - - M5 2
TSL 20x12 20 12 26 9 5 50 42 3 - 1
TSL 25x8 25 10 32 - 5 50 - - M6 2
TSL 25x10 25 12 32 - 5 50 - - M6 2
TSL 25x12 25 16 32 - 5 50 - - M6 2
TSL 25x16 25 20 32 10 5 50 42 3 - 1
TSL 25x20 32 8 32 10 5 50 42 3 - 1
TSL 32x8 32 10 38 - 5 60 - - M6 2
TSL 32x10 32 12 38 - 5 60 - - M8 2
TSL 32x12 32 12 38 - 5 60 - - M8 2
TSL 32x16 32 16 38 10 5 60 52 3 - 1
TSL 32x20 32 20 38 10 5 60 52 3 - 1
TSL 32x25 32 25 38 10 5 60 52 3 - 1
TSL 40x8 40 8 48 - 5 85 - - M6 2
TSL 40x10 40 10 48 - 5 85 - - M8 2
TSL 40x12 40 12 48 - 5 85 - - M8 2
TSL 40x16 40 16 48 12 5 85 77 2 - 1
TSL 40x20 40 20 48 12 5 85 77 2 - 1
TSL 40x25 40 25 48 12 5 85 77 2 - 1
TSL 40x32 40 32 48 12 5 85 77 2 - 1
TSL 50x10 50 10 - - 8 92 - - M8 2
TSL 50x12 50 12 58 - 8 92 - - M8 2
TSL 50x16 50 16 58 12 8 92 80 4 - 1
TSL 50x20 50 20 58 12 8 92 80 4 - 1
TSL 50x25 50 25 58 12 8 92 80 4 - 1
TSL 50x32 50 32 58 12 8 92 80 4 - 1
TSL 50x40 50 40 58 12 8 92 80 4 - 1
