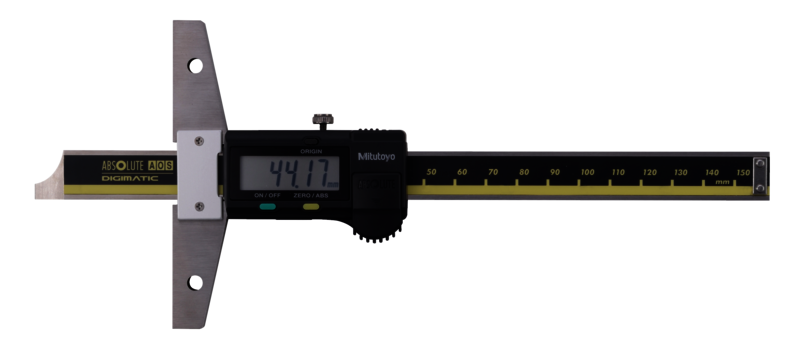

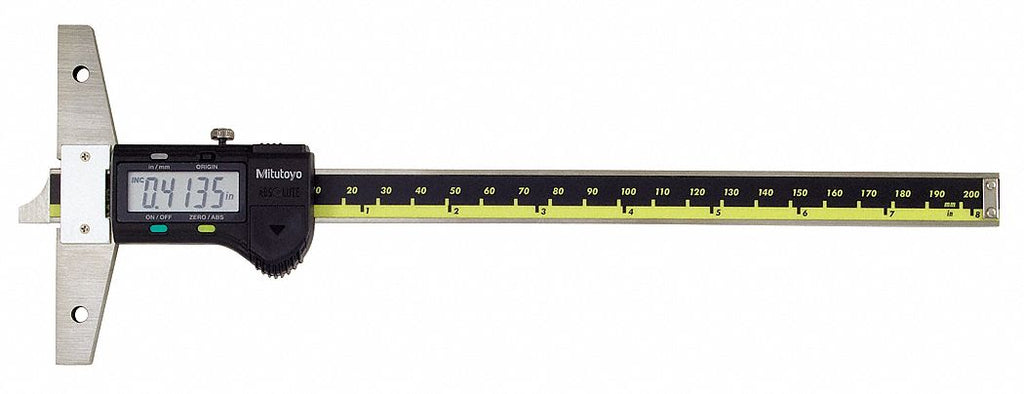

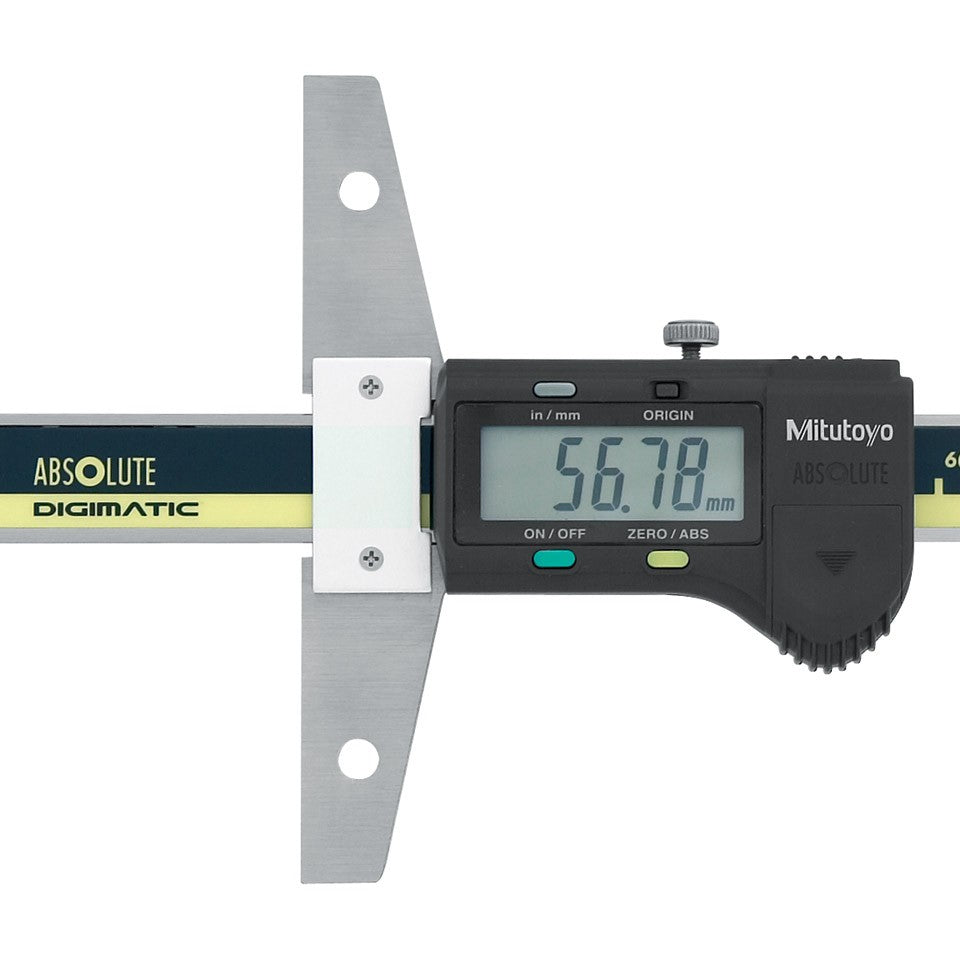

Absolute Digimatic Depth Gauge - 571

Save 50%

Size: 571-201 (0-150MM)
Price:
Rs. 21,999 Rs. 44,000

Tax included Shipping calculated at checkout

Description

Features:-

  • The absolute Digimatic Depth Gage keeps track of the origin point (once set) for the entire life of the battery.
  • Base and measuring faces are hardened and micro-lapped.
  • Optional wider extension bases are available. (up to 450mm range models)
  • SPC data output optional
  • Origin-set, Zero-setting, Automatic Power ON/OFF, data output, inch/mm conversion (inch/mm models)
  • Alarm: Low voltage, Counting value composition error



SPECIFICATIONS:-

TITLE  CODE RANGE LEAST COUNT ACCURACY
Absolute Digimatic Depth Gage
571-201 0-150mm 0.01MM ±0.02MM
571-202 0-200mm 0.01MM ±0.02MM
571-203 0-300mm 0.01MM ±0.03MM



TECHNICAL DATA:-

Accuracy: ±00.02mm (<200mm), ±0.03mm (<300mm) ±0.05mm (<600mm), ±0.06mm (<750mm), ±0.07mm (<1000mm) (excluding quantizing error)
Resolution*: 0.01mm
Repeatability: 0.01mm
Display: LCD
Scale type: Absolute electrostatic (electromagnetic)* type linear encoder
Max. response speed: Unlimited
Battery: SR44 (1 pc.), 938882
Battery life: Approx. 20,000 hours (3 years (1 year: 300mm/ 12'' models)* under normal use
Dust/Water protection level:

IP67

*Coolant proof models



Metric:-

Range Order No. ACCURACY Base (WxT)
0-150mm 571-201-20 ±0.02MM 100x6mm
0-200mm 571-202-20 ±0.02MM 100x6mm
0-300mm 571-203-20 ±0.03MM 100x6mm
