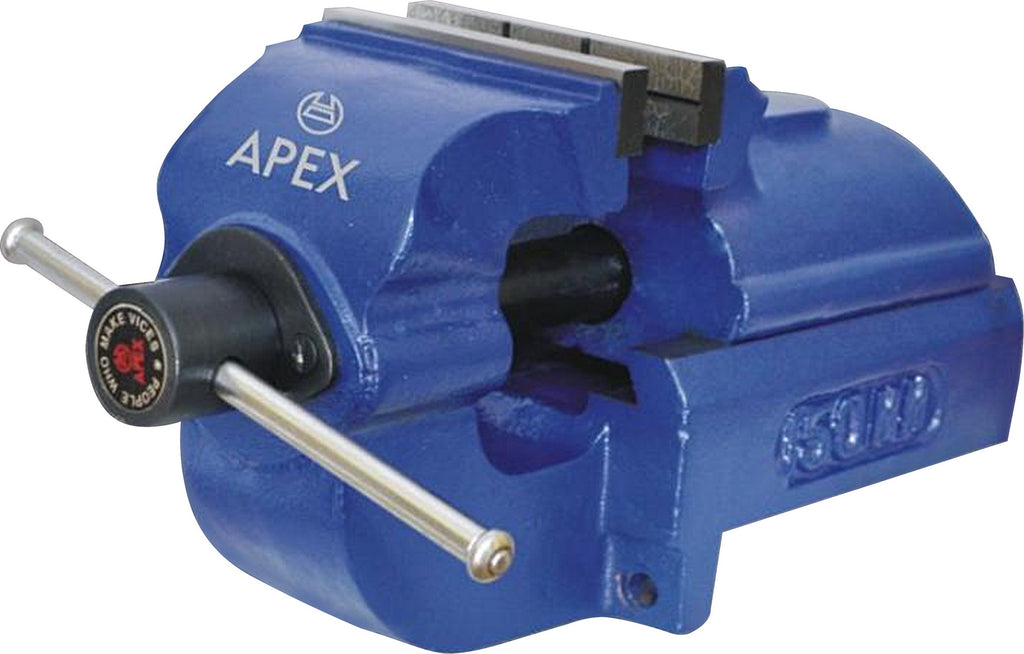

Engineer's vice - Apex Code 744

Save 22%

Jaw Size: 4 Inches / 100mm
Price:
Rs. 5,069 Rs. 6,489

Tax included Shipping calculated at checkout

Description

Features :
  • Accurate: workmanship plus "APEX' design feature provide this vice great clamping strength and accuracy.
  • Rear Jaw Sliding: The design of the front jaw being stationary helps the additional muscular strength and never breaks like the ordinary design.
  • Dove Tail Guide Ways: Thus Positive locking to withstand heavy loads.
  • Nut & Screw: Are held in Jig Bored Holes hence are within the perfect straight line and have no tension spring which provides free motion and does not strain the operator.
  • Front Mounting: Holes are provided for the Table and Mount the vice with perfect rigidity.



       SPECIFICATIONS
RANGE 4 Inches 5 Inches 6 Inches
Width of Jaws (In mm) 100 60 45
Opening of Jaws (In mm) 125 90 70
Depth of Jaws (In mm) 150 125 75
Weight In (Kgs) 8.5 16 31
