Infrared Transmission Probes For CNC Machine Tools-9413

Save 25%

Size: 9413-1 (140mm)
Price:
Rs. 135,605 Rs. 180,354

Tax included Shipping calculated at checkout

Description

Features:-

  • On machine measurement of all kinds of small and medium sized machining
    Centers, CNC boring, milling machines and five-axis CNC, machine tools.
  • Automatically set the workpiece coordinate and machining reference point before CNC machining process
  • Automatically measure dimension and position coordinate during CNC machining
  • Four kinds of SSR signals such as probe status, error, low, voltage and pulse are transmitted to CNC machine tools
  • M code is used to control on or off of probes
  • Infrared transmission, strong anti-interference
  • Infrared transmission/reception range: 5mm
  • Supplied with automatic measurement software
  • optional accessory: styli

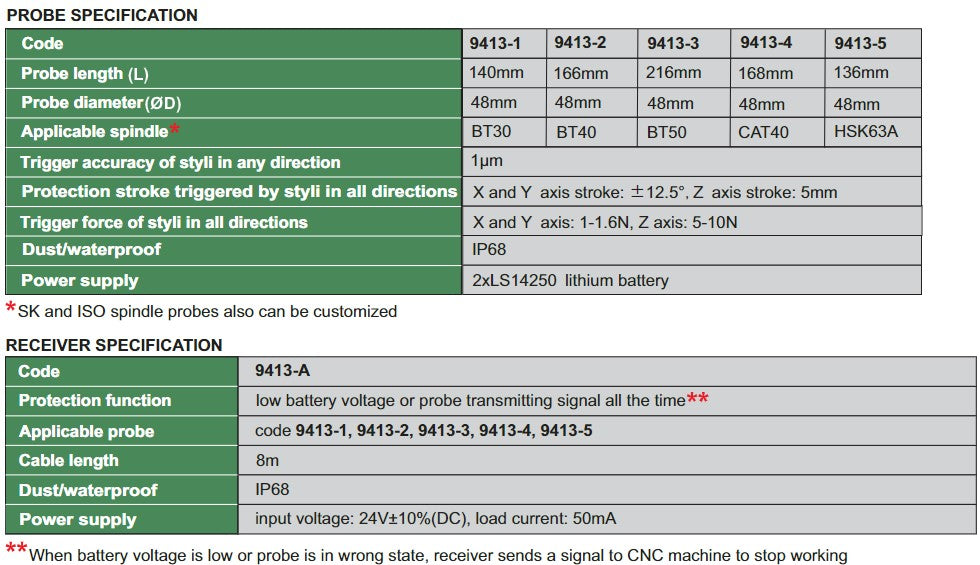

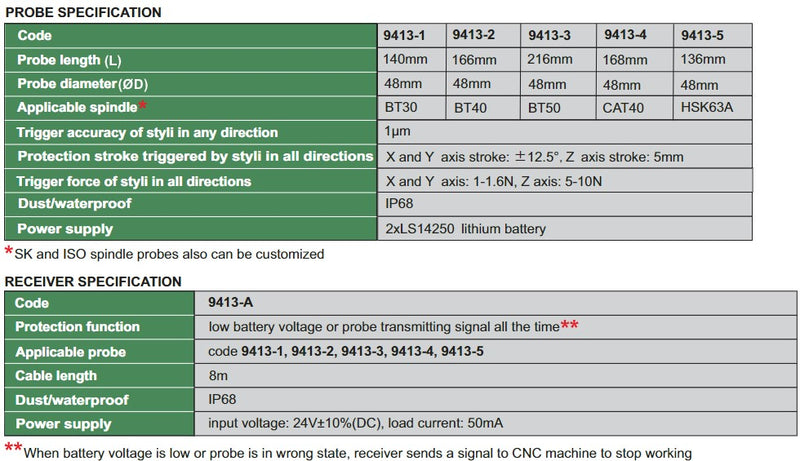

    Code 9413-1 9413-2 9413-3 9413-4 9413-5

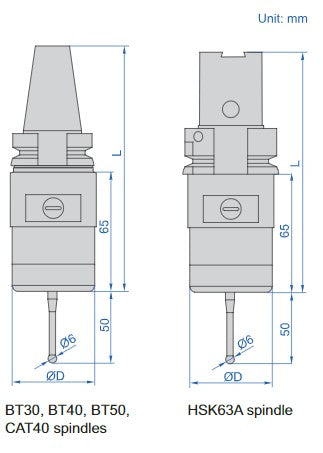

    Probe length (L) 140mm 166mm 216mm 168mm 136
    Probe Diameter (⌀D) 48mm 48mm 48mm 48mm 48mm
    Applicable spindle  BT30 BT40 BT50 CAT40 HSK63A
    Trigger accuracy of styli in any direction 1
    Protection stroke triggered by styli in all directions X and Y axis stroke: 12.5, Z axis stroke: 5mm
    Trigger force of styli in all directions X and Y axis: 1-1.6N, Z axis: 5-10N
    Dust/waterproof  IP68
    Power supply 2xLS14250 lithium battery
