Magnetic Square With V Groove - 6539

Save 25%

Size: 6539-100 (5-30mm)
Price:
Rs. 49,135 Rs. 65,349

Tax included Shipping calculated at checkout

Description

Features:-

  • Hold flat and cylindrical workpieces for inspection and and machining
  • Magnetic force on top, left, right and V grooves
  • Parallelism and squareness of top, bottom, left, right and back: 20µm
  • Parallelism and squareness of V grooves to top, bottom, left, right and back: 20µm

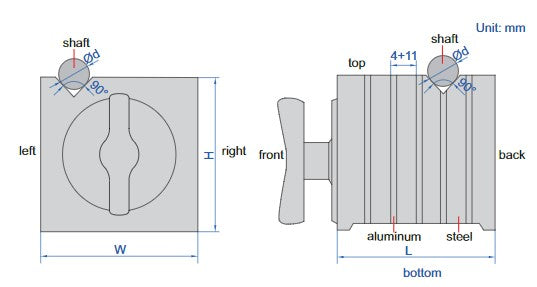

    Code Size (LxWxH) Magnetic Force of V grooves Magnetic force of top, left, and right sides Range of shafts (⌀d)
    On granite surface plates On cast iron plate On granite surface plate On caste iron plates
    6539-100 100x100x100mm 30kgf 25kgf 50kgf 30kgf 5-30mm
