Motorized Digital Rockwell/Superficial Rockwell Hardness Testers - HDT-RT151

Save 25%

Size: HDT-RT151
Price:
Rs. 157,066 Rs. 208,897

Tax included Shipping calculated at checkout

Description

Features:-

  • Electronic loading test force, high accuracy of force value, and stable measurement value

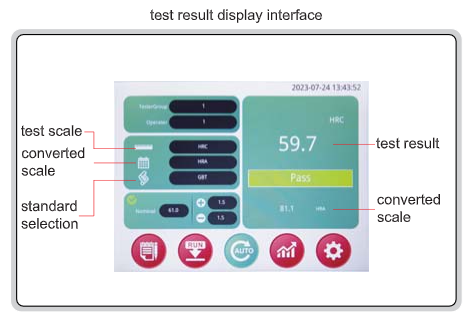

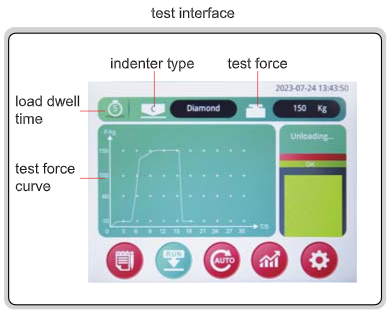

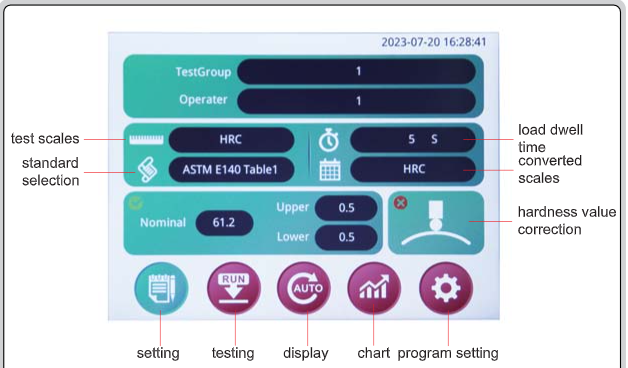

  • Touch screen operation and display, simple operation interface
  • 15 types of Rockwell hardness scales can be tested
  • Convertible to various hardness standards such as HB and HV

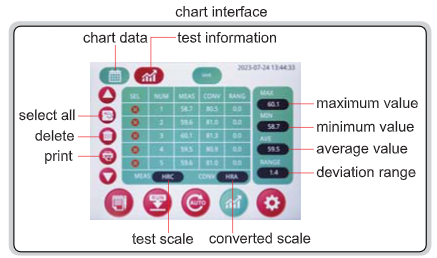

  • 500 sets of storage
  • With correction function, the hardness value can be corrected based on the size of the cylinders
  • Supplied with manufacturer inspection certificate traceable to DKD Germany.
  • According to ISO 6508

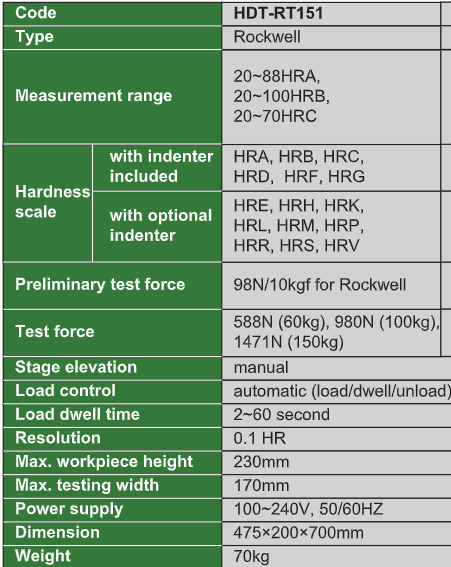

    Code HDT-RT151
    Type Rockwell
    Measurement range 20~88HRA, 20~100HRB, 20~70HRC
    Hardness scale with indenter included  HRA, HRB, HRC, HRD, HRF, HRG
    with optional indenter HRE, HRH, HRK, HRL, HRM, HRP, HRR,HRS, HRV
    Preliminary test force 92N/10Kgf for rockwell
    Test force 588N (60Kg), 980N (100Kg), 1471N (150Kg)
    Stage elevation manual
    Load control automatic (load/dwell/unload)
    Load dwell time 2~60 seconds
    Resolution 0.1 HR
    Max. workpiece height 230mm
    Max. testing width 170mm
    Power supply 100~240V, 50/60Hz
    Dimension 475x200x700mm
    weight 70Kg
