Mould Clamp - With Clamping Stud : MC

Save 27%

Size: MC - 12
Price:
Rs. 799 Rs. 1,095

Tax included Shipping calculated at checkout

Description

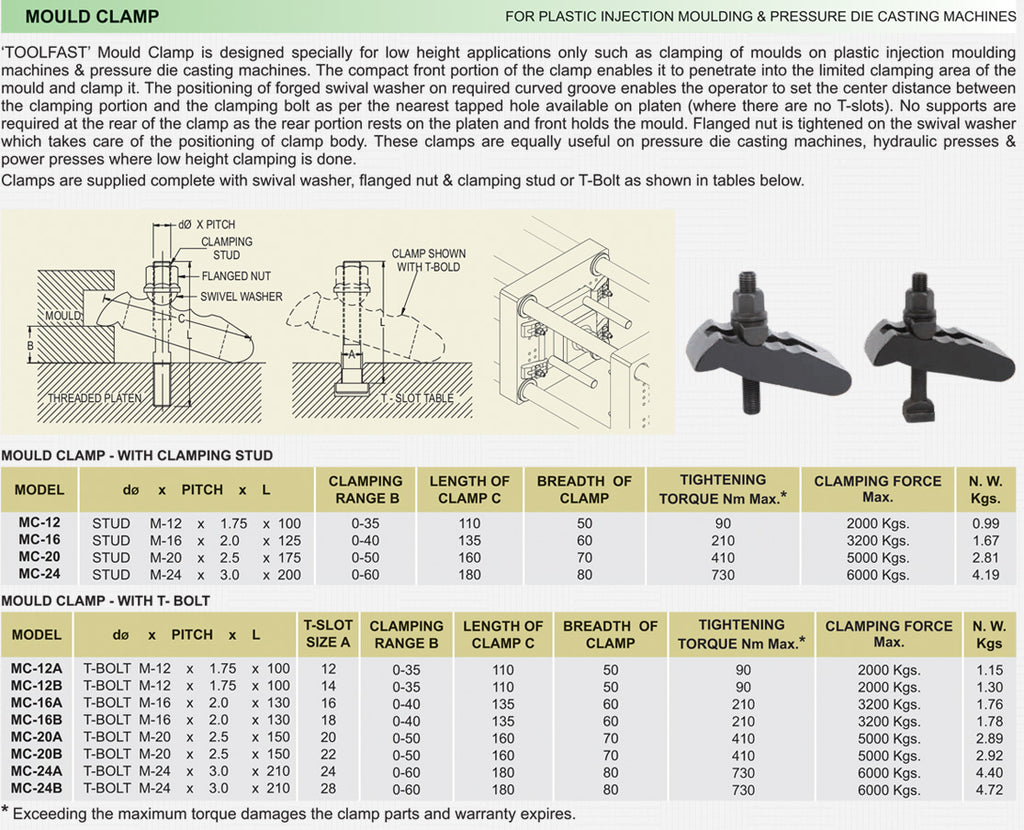

  • Tool Fast mould clamp is designed especially for low height applications.
  • Only such as clamping of moulds on plastic injection moulding machines & pressure die casting machines.
  • The compact front portion of the clamp enables it to penetrate into the limited clamping area o the mould & clamp it.

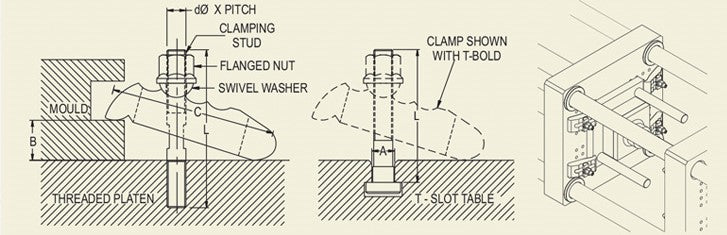

  • The positioning of the forged swivel washer on the required curved groove enables the operator to set the centre distance between the clamping portion.
  • The clamping bolt as per the nearest tapped hole available on the platen (where there are no T-slots).
  • No supports are required at the rear of the clamp as the rear portion rests on the platen & the front holds the mould.
  • The flanged nut is tightened on the swivel washer which takes care of the positioning of the clamp body.
  • These clamps are equally useful on pressure die casting machines, hydraulic presses & power presses where low height clamping is done.



SPECIFICATIONS
Model MC-12 MC-16 MC-20 MC-24
dø × Pitch × L Stud M-12 × 1.75 × 100 Stud M-16 × 2.0 × 125 Stud M-20 × 2.5 × 175 Stud M-24 × 3.0 × 200
Clamping Range B 0-35 0-40 0-50 0-60
Length of Clamp C 110 135 160 180
Breadth of Clamp 50 60 70 80
Tightening Torque Nm Max
90 210 410 730
Clamping Force Max 2000 Kgs 3200 Kgs 5000 Kgs 6000 Kgs
N.W (Kgs.) 0.99 1.67 2.81 4.19
