NFS ,NFT Series : High Oil Pressure, Hydraulic Swing Clamps, Inlet Oil Pressure 50-350 kg/cm2

Save 27%

Variant: NFS-25A-R
Price:
Rs. 34,775 Rs. 47,640

Tax included Shipping calculated at checkout

Description

These are heavy-duty Hydraulic swing clamps having cylinders made of medium cartoon steel are used where high clamping force is required.



Available in different types as given below:

NFS Series: Flanged Type

NFT Series: Threaded Version

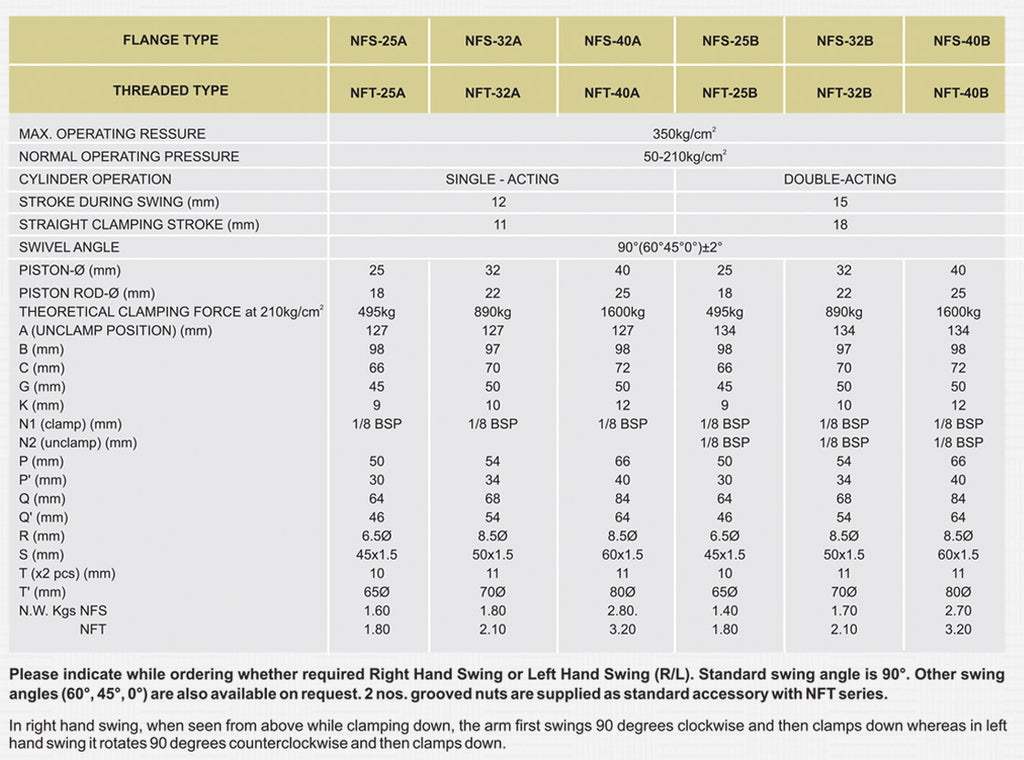

Flange Type NFS-25A NFS-32A NFS-40A NFS-25A NFS-32A NFS-40A
Threaded Type NFT-25A NFT-32A NFT-40A NFT-25A NFT-32A NFT-40A
Max Operating Ressure
350kg/cm2
Normal Operating Pressure
50-210kg/cm2
Cylinder Operation Single-Acting Double- Acting
Stoke During Swing (mm)
12 15
Straight Clamping Stroke (mm)
11 18
Swivel Angle 90° (60°45°0°)+
Piston-Ø (mm) 25 32 40 25 32 40
Piston ROD - Ø (mm)
18 22 25 18 22 25
Theoretical Clamping Force at 210kg/cm2
495kg 890kg 1600kg 495kg 890kg 1600kg
A (unclamp Position) (mm)
127 127 127 134 134 134
B (mm) 98 97 98 98 97 98
C (mm) 66 70 72 66 70 72
G (mm) 45 50 50 45 50 50
K(mm) 9 10 12 9 10 12
N1 (clamp) (mm) 1/8BSP 1/8 BSP 1/8 BSP 1/8 BSP 1/8 BSP 1/8 BSP
N2 (unclamp) (mm) 1/8 BSP 1/8 BSP 1/8 BSP
P (mm) 50 54 66 50 54 66
P' (mm) 30 34 40 30 34 40
Q (mm) 64 68 84 64 68 84
Q' (mm) 46 54 64 46 54 64
R (mm) 6.5Ø 8.5Ø 8.5Ø 6.5Ø 8.5Ø 8.5Ø
S (mm) 45x1.5 50x1.5 60x1.5 45X1.5 50X1.5 60X1.5
T (x2 pcs) (mm) 10 11 11 10 11 11
T (mm) 65Ø 70Ø 80Ø 65Ø 70Ø 80Ø
N.W Kgs NFS 1.6 1.8 2.8 1.4 1.7 2.7
NFT 1.8 2.1 3.2 1.8 2.1 3.2
