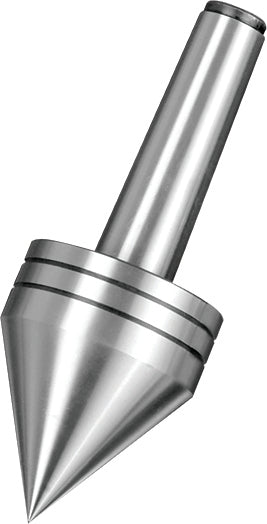

Pipe Center MT-5 : Pointed 60° Angle Revolving Cone (Not Dead) (For Conventional Slow Speed Non CNC Application)

Save 40%

Shank Taper: MT-5 x 0-2''
Price:
Rs. 2,810 Rs. 4,693

Tax included Shipping calculated at checkout

Description

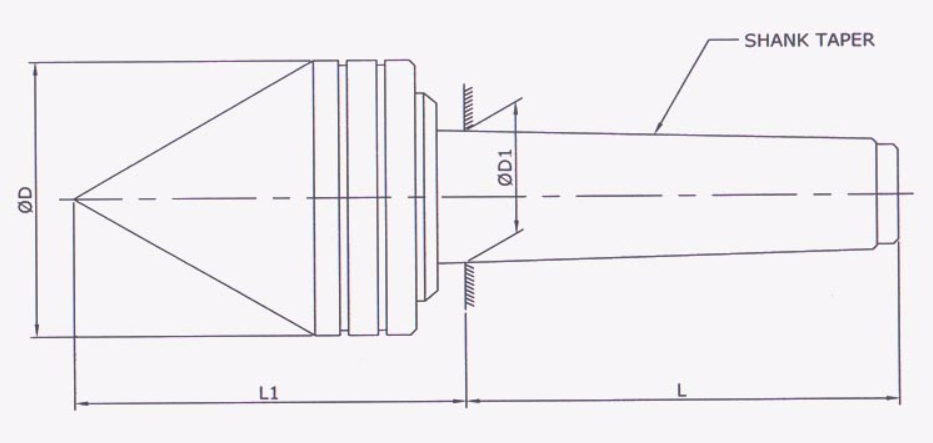

          SPECIFICATIONS
Part No. PC MT5 0-2'' PC MT5 0-2-1/2'' PC MT5 0-3'' PC MT5 0-3-1/2'' PC MT5 0-4'' PC MT5 0-5''
SHANK TAPER MT-5 MT-5 MT-5 MT-5 MT-5 MT-5
∅D mm 55 65 77 90 102 127
∅D1 mm 44.399 44.399 44.399 44.399 44.399 44.399
L mm 129.5 129.5 129.5 129.5 129.5 129.5
L1 mm 90.5 93.5 104.5 117.5 117.5 159
CONC. ERROE MM 0.015 0.015 0.015 0.015 0.015 0.015
MAX. RPM 750 750 600 600 500 350
