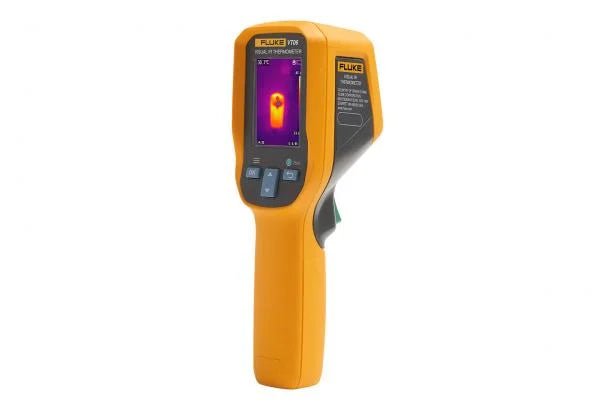

Portable Infrared Thermal Imager - Fluke VT06

Save 30%

Size: Fluke 06
Price:
Rs. 59,099 Rs. 84,220

Tax included Shipping calculated at checkout

Description

Features:-

  • 120 x 90 resolution for more details
  • Wide temperature range, -20°C to 400°C
  • IP65 rated for dust and water proof, 2m drop test, suitable for harsh industrial environments
  • Quickly locate the measured target with built-in laser pointer
  • 2 hours charging time, 8 hours battery life
  • Single-level menu interface, Open-and-View
Model No. VT06
Infrared resolution 120x90
IR frequency band 7.5-14μm(long wave)
Frame rate 9 Hz
Thermal Sensitivity/NETD <60mK
Field of view (HxV) 50° x 37.5°
Spatial resolution 7 6 mrad
Focus system Focus free
Minimum focusing distance 0.5m (19.7in)
Image display and storage
Image Mode Thermal image
Palettes Ironbow, blue-red, high-contrast, amber, hot metal, grayscale
Internal storage >28GB (>100000 images) 14GB Internal storage for VT06 Manufactured before 6 aug 2022
File format JPEG compression (jpg)
Temperature measurement
Temperature range 20°C to 400°C (-4°F to 752°F) (not specified for below -10°C))
Temperature accuracy +2°C or 2% @ 23°C +5°C, whichever is greater
Emissivity Adjustable
Background temperature compensation Yes
Auto high/low tempearture Yes
Alarm Yes
Center point temperature Yes
Power system
Battery type Rechargeable Li-ion battery, unremovable
Battery operating time > 8hrs
Charging time <2.5 hrs to full
Battery charging temperature 0°C to 45°C
Battery charging system  Charge in the machine (the battery is not removable)
AC adapter Include power supply, universal adapter output 5 VDC, 2A
Power saving mode' Yes
environmental specifications
Operating temperature -10°C to 50°C
Storage temperature -40°C to 70°C
Operating altitude 2000m (1.24m)
Storage altitude 12000m (7.5m)
Others
Warranty 1 years
Standard accessories Wrist strap, quick reference guide, charge+ adapte, type-C data cable, data downloading card
Display 6.096cm (2.4 inch ) LCD
language English
Size 20.4x6.6x7.6cm
Weight 0.35kg
Relative Humidity <90% non condensing
Safety
Safety Standards IEC 61010-1: pollution degree 2
laser IEC 60825-1 class 2 650nm, <1mW
Battery IEC 62133-2 UN 38.3
Protection class IEC 60529 IP65 (with type C port closed)
Drop test 2m
Electromagnetic Compatibility (EMC)
International IEC 61326-1 Industrial electromagnetic environment CISPR 11 group 1, class A
