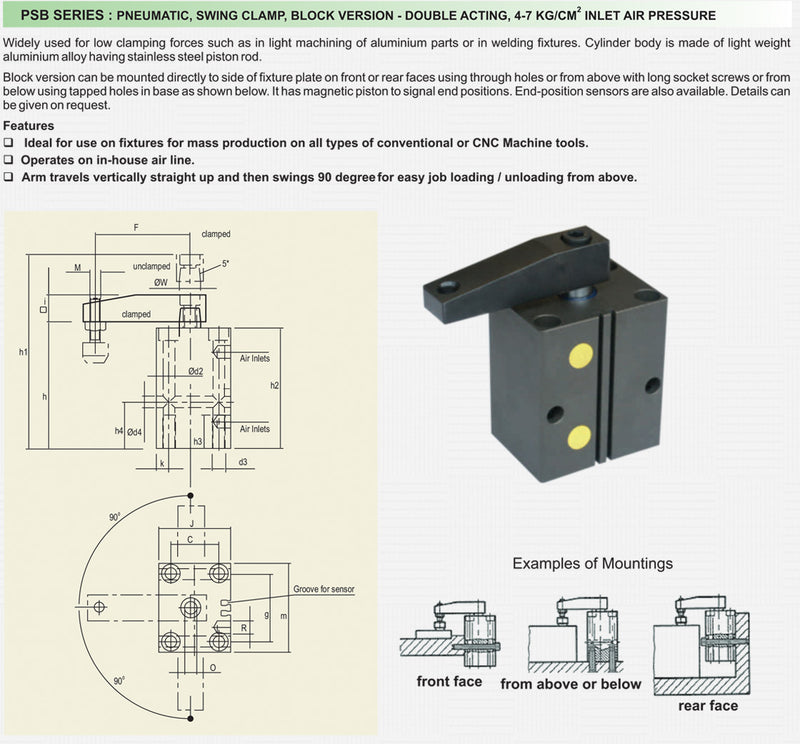

Widely used for low clamping forces such as in light machining of aluminum parts or in welding fixtures. The cylinder body is made of a lightweight aluminum alloy with having stainless steel piston rod.



Block version can be mounted directly to the side of fixture plate on the front or rear faces using through-holes or from above with long socket screws or from below using tapped holes in bases as shown below. It has a magnetic piston to signal end positions. End-position sensors are also available. Details can be given on request.



Features :

  • Ideal for use on fixtures for mass production on all types of conventional or CNC machine tools.
  • Operates on the in-house airline.
  • Arm travels vertically straight up and then swings 90 degrees for easy job loading/unloading from above.



Model PSB 25 R/L PSB 32 R/L PSB 40 R/L PSB 50 R/L PSB 63 R/L
K 7.5 7.5 9 9.5 10
J 35 45 55 65 80
M M 6 M 8 M 8 M 12 M 12
m 55 60 70 85 100
o M 8 M 8 M 8 M 10 M 10
Air Inlets R 2 Nos. M 5 1/8 BSP 1/8 BSP 1/8 BSP 1/8 BSP
w dia. 14 16 16 20 20
Piston Dia 25 32 40 50 63
Stroke During Swing 13 16 15 17 15
Straight Clamping Stroke 14 14 15 15 15
Total Stroke 27 30 30 32 30
Clamping Force at 5kg/cm2
 16kg 30kg 50kg 85kg 140kg
N.W kgs. 0.7 0.9 1.1 1.2 1.4




Model PSB 25 R/L PSB 32 R/L PSB 40 R/L PSB 50 R/L PSB 63 R/L
C 20 30 37 46 60
Dia.d4 8.5 8.5 8.5 10.5 10.5
Dia.d2 6.5 6.5 8.5 8.5 10.5
d3 M8 M8 M10 M10 M12
F 50 60 70 80 90
g 40 45 52 66 80
Clamp Position h 8 95 95 105 105
h1 125 145 145 162 162
h2 78 90 90 100 100
h3 20 20 25 30 30
h4 32 43 40 45 36
i▢ 16 19 19 25 25
