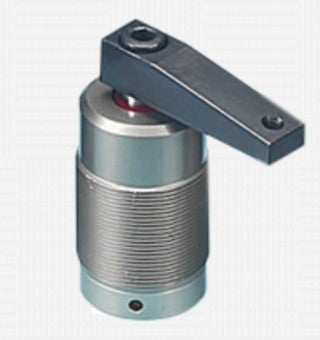

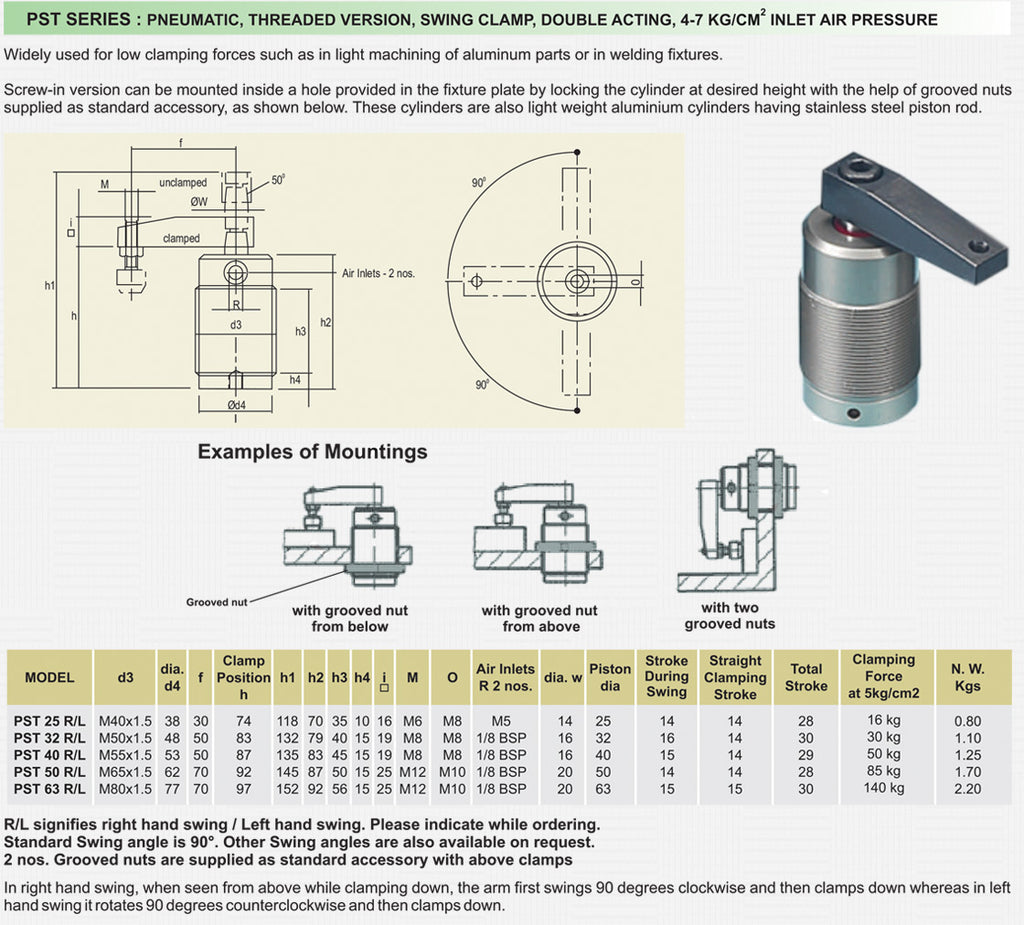

PST Series : Pneumatic, threaded Version Swing Clamp, Double Acting, 4-7 kg/cm2 Inlet Air Pressure

Save 27%

Right or Left: Right
Variant: PST-25-R
Price:
Rs. 17,949 Rs. 24,590

Tax included Shipping calculated at checkout

Description

Widely used for low clamping forces such as in light machining of aluminum parts or in welding fixtures.

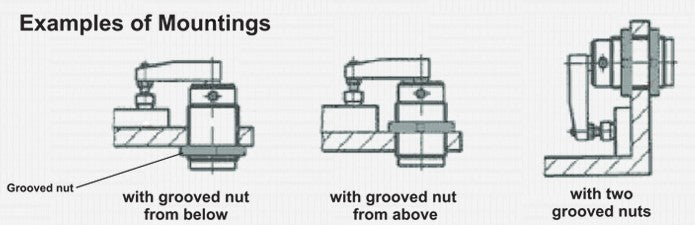

The Screw-in version can be mounted inside a hole provided in the fixture plate by locking the cylinder at desired height with the help of grooved nuts supplied as a standard accessory, as shown below. These cylinders are also lightweight aluminum cylinders having stainless steel piston rod.

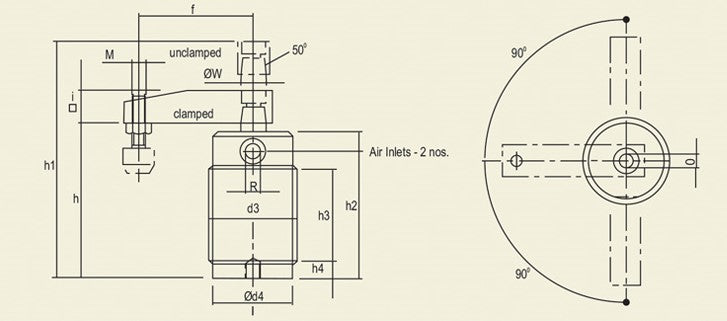

Range PST 25 R/L PST 32 R/L PST 40 R/L PST 50 R/L PST 63 R/L
d3 M40 x 1.5 M50 x 1.5 M55 x 1.5 M65 x 1.5 M80 x 1.5
dia d4 30 50 53 62 77
f 30 50 50 70 70
Clamping Position h 74 83 87 92 97
h1 118 132 135 145 152
h2 70 79 83 87 92
h3 35 40 45 50 56
h4 10 15 15 15 15
i▢ 16 19 19 25 25
M M6 M8 M8 M12 M12
O M8 M8 M8 M10 M10
Air Inlets R2 nos. M5 1/8 BSP 1/8 BSP 1/8 BSP 1/8 BSP
dia. w 14 16 16 20 20
Piston dia 25 32 40 50 63
Stroke during swing 14 16 15 14 15
Straight Clamping Stroke
14 14 14 14 15
Total Stroke 28 30 29 28 30
Clamping Force (25kg/cm2)
16kg 30kg 50kg 85kg 140kg
N.W Kgs. 0.8 1.1 1.25 1.7 2.2
