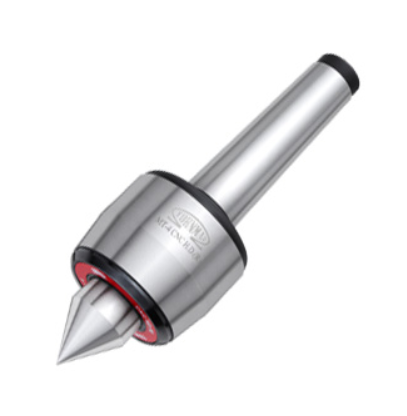

Revolving Center : Heavy Duty - R Model (CNC , Stub Point)

Save 40%

Shank Taper: MT-2
Price:
Rs. 5,280 Rs. 8,818

Tax included Shipping calculated at checkout

Description

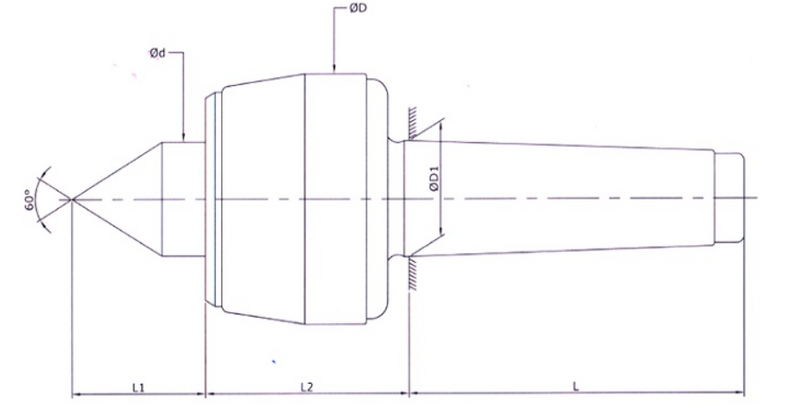

   SPECIFICATIONS
Part No. HSC MT2 CNC HDRS HSC MT3 CNC HDRS HSC MT4 CNC HDRS HSC MT5 CNC HDRS
HSC MT6 CNC HDRS
SHANK TAPER MT-2 MT-3 MT-4 MT-5 MT-6
POINT STYLE STUB POINT STUB POINT STUB POINT STUB POINT STUB POINT
∅d mm 20 28 32 38 55
∅D mm 46 62 68 87 112
∅D1 mm 17.78 23.825 31.267 44.399 63.348
L1 25 34 41 51 63
L2 48.5 62.5 65 80.5 106
L 64 81 102.5 129.5 182
MAX.JOB WT.KG 200 500 800 2000 3500
CONC. ERROE MM 0.005 0.005 0.005 0.005 0.01
MAX.RPM 7000 5000 3800 3000 2600
