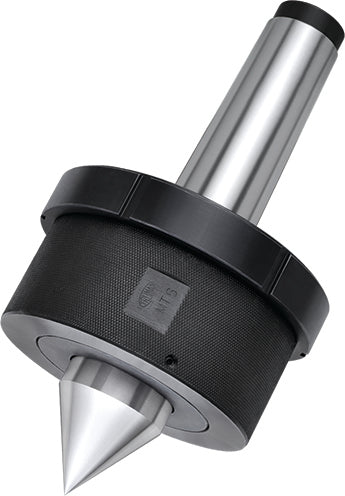

Revolving Center : Jumbo Heavy Duty (Lathe , Compact)

Save 40%

Shank Taper: MT-5
Price:
Rs. 20,330 Rs. 33,951

Tax included Shipping calculated at checkout

Description

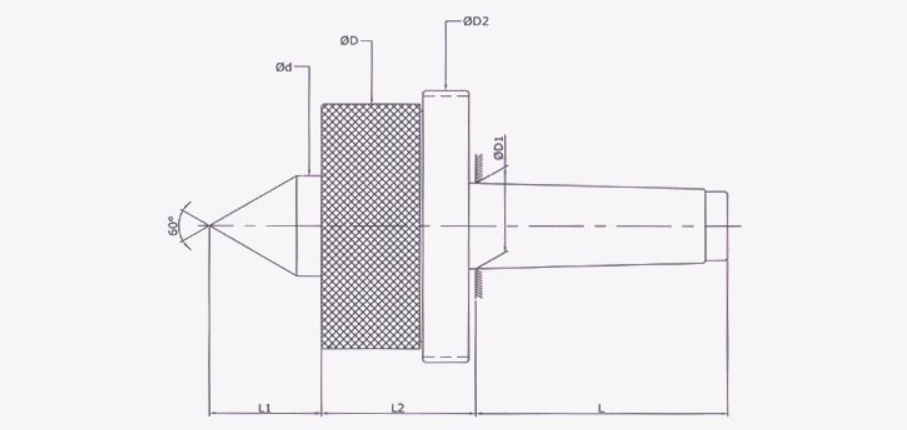

SPECIFICATIONS
Part No. RC MT5 JHDC RC MT6 JHDC RC MT7 JHDC
MODEL JUMBO HEAVY-DUTY COMPACT JUMBO HEAVY-DUTY COMPACT
JUMBO HEAVY-DUTY COMPACT
SHANK TAPER MT-5 MT-6 MT-7
∅d mm 55 74 74
∅D mm 125 180 180
∅D1 mm 44.399 63.348 83.058
L1mm 63 82 82
L2mm 92.5 112 112
L 129.5 182 254
MAX.JOB WT.KG 2500 5000 6500
CONC. ERROE MM 0.015 0.015 0.015
