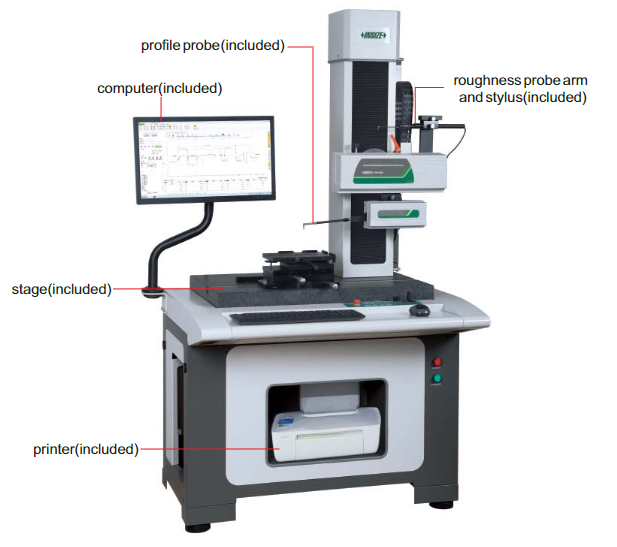

Roughness And Profile Measuring Machine - SPM-2000

Save 25%

Size: SPM-2000
Price:
Rs. 2,276,459 Rs. 3,027,690

Tax included Shipping calculated at checkout

Description

Features:-

  • Software is included, for measurement and data output
  • Profile sensor with low noise
  • Wide range roughness sensor without skid
  • Meet ISO1997, ISO1984, BS1988, DIN 1990, ASME1995, JIS1982, JIS1994 standards
  • 65 roughness parameters

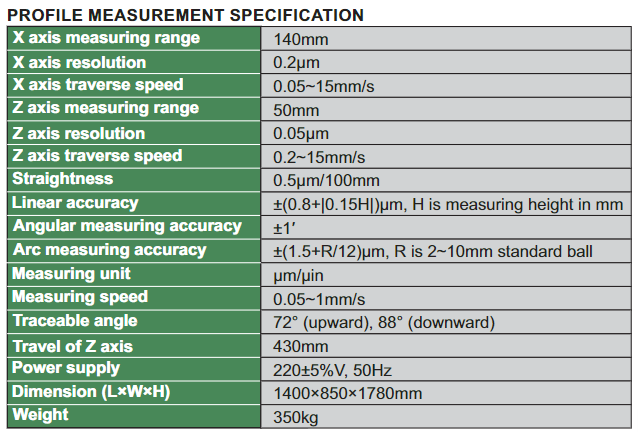

    Code SPM-2000
    X axis measuring range 140mm
    X axis resolution 0.2μm
    X axis Traverse speed 0.05~15mm/s
    Z axis Measuring range 50mm
    Z axis resolution  0.05μm
    Z axis Traverse speed 0.2~15mm/s
    Straightness 0.5μm~100mm/s
    Linear accuracy +(0.8+I0.15HI)μm , H is measuring height in mm
    Angular measuring accuracy +1

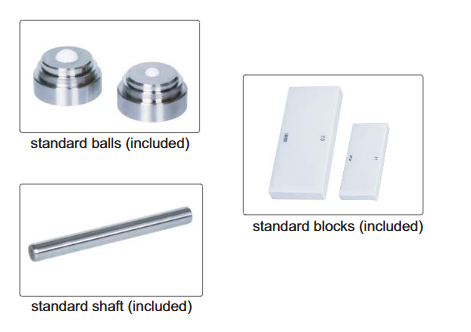

    Arc measuring accuracy +(1.5+R/12)μm , R is 2~10mm standard ball
    Radius of probe tip 25μm
    Traverse direction backword
    Measuring force 6.86~9.8mN
    Measuring unit μm/μin
    Traceable angle 72° (upward), 88° (downward)
    Travel of Z axis  430mm
    Dimension (LxWxH) 1400x850x1780mm
    Power supply 220+5%V, 50Hz
    Weight 350Kg
