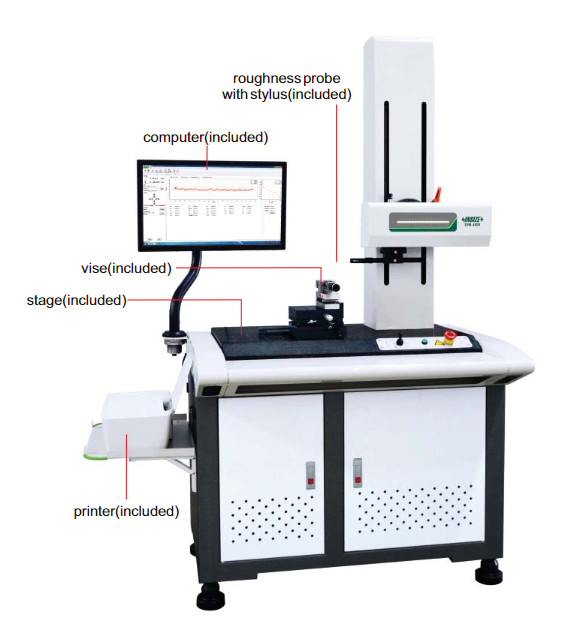

Roughness Measuring Machine - SPM-4000

Save 25%

Size: SPM-4000
Price:
Rs. 1,308,749 Rs. 1,740,639

Tax included Shipping calculated at checkout

Description

Features:-

  • Skidless probe
  • Hundreds of parameters can be evaluated, such as roughness profile, waviness profile, primary profile, etc.

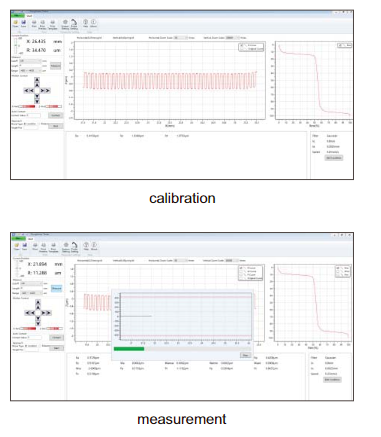

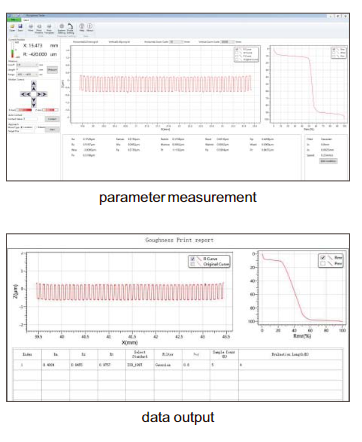

  • Software is included, for measurement and data output

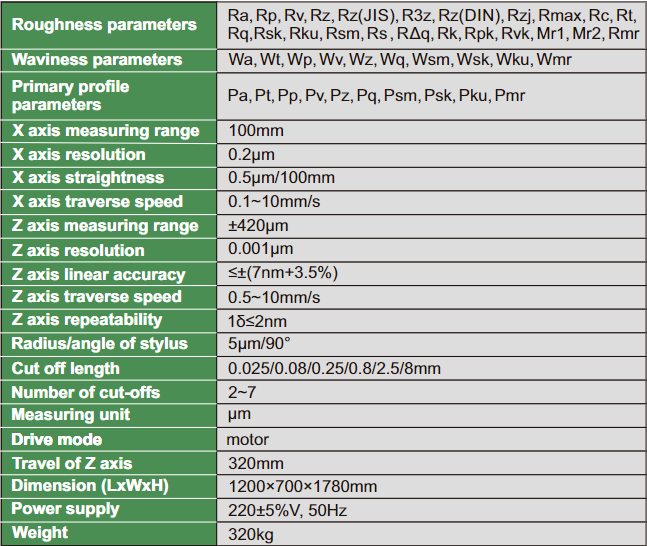

    Code SPM-4000
    Roughness Parameters Ra,Rp, Rv, Rz, Rz(JIS), R3z, Rz(DIN), Rzj, Rmax, Rc, Rt, Rq, Rsk, Rku, Rs, Rq, Rk, Rpk, Rvk, Mr1, Mr2, Rmr
    Waviness parameters Wa, Wt, Wp, Wv. Wz, Wq, Wsm, Wsk, Wku, Wmr
    Primary profile parameters Pa, Pt, Pp, Pv, Pz, Pq, Psm, Psk, Pku, Pmr
    X axis measuring range 100mm
    X axis resolution 0.2μm
    X axis Straightness 0.5μm/100mm
    X axis Traverse speed 0.1~10mm/s
    Z axis Measuring range +420μm
    Z axis resolution  0.001μm
    Z axis linear accuracy < +(7nm+3.5%)
    Z axis Traverse speed 0.5~10mm/s
    Z axis repeatability +2nm
    Radius/angle of stlus 5μm/90°
    Cut off length 0.025/0.08/0.25/0.8/2.5/8mm
    Number of cut-offs 2~7
    Measuing unit
    Drive mode motor
    Travel of Z axis 320mm
    Dimension (LxWxH) 1200x700x1780mm
    Power supply 220 5%V, 50Hz
    Weight 320Kg
