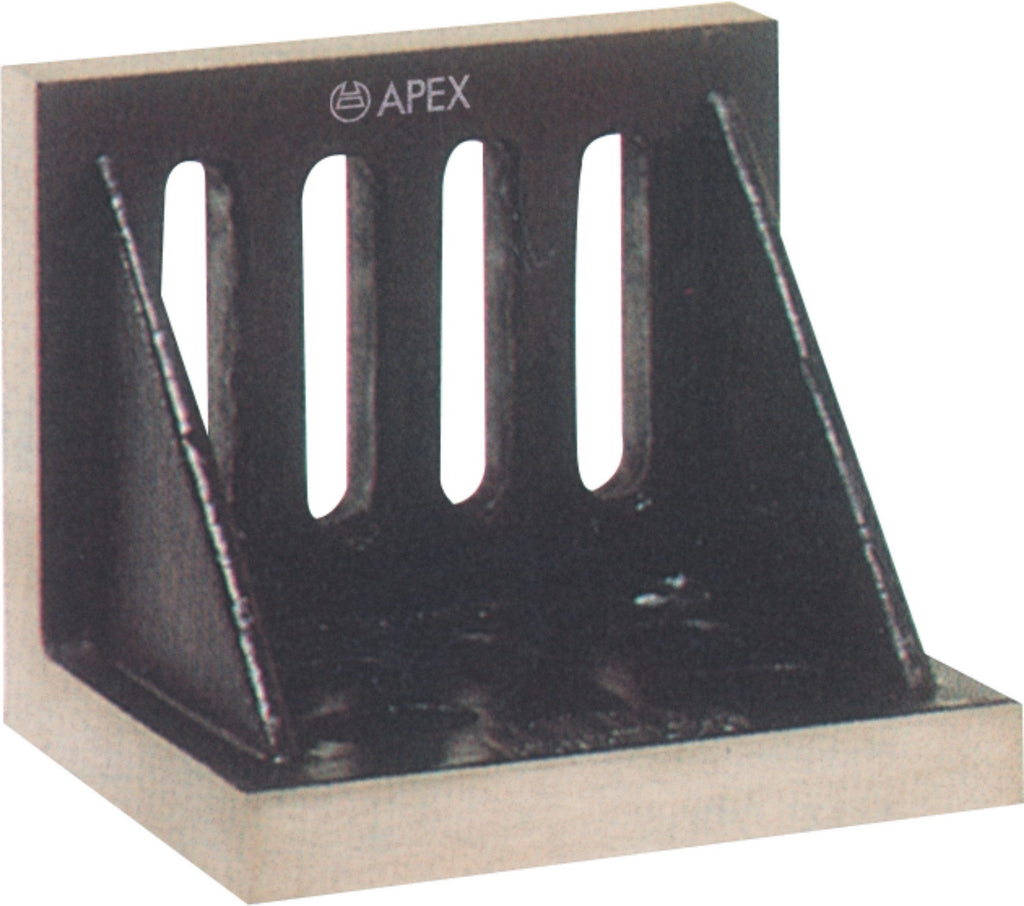

Slotted Angle Plates Precision Ground (Webbed End) - Apex Code 753G

Save 22%

Size: 90MM x 75MM x 65MM
Price:
Rs. 1,699 Rs. 2,175

Tax included Shipping calculated at checkout

Description

 Features :

  • These slotted angle plates have all the features of Code 751 except are provided with convenient clamping slots for mounting and are widely used for machining lay out and inspection.
  • Supplied in two types webbed end have side webs & an open end.
  • Code 753G :Webbed End Precision Ground

Finish : Wrinkle Black



         SPECIFICATIONS
Code 753G Open End Length In Inches 'A' Length In Inches 'B' Length In Inches 'C' Weight In (Kgs)
753G - 1 3 2.1/2 2 0.6
753G - 2 3.1/2 3 2.1/2 0.8
753G - 3 4.1/2 3.1/2 3 1.4
753G - 4 6 5 4.1/2 4
753G - 5 7 5 4.1/2 5
753G- 6 8 6 5 6
753G - 7 9 7 6 8
753G - 8 10 8 6 11
753G - 9 12 9 8 20
