Smart Digital Multimeter- 9247-190

Save 25%

Size: 9247-190
Price:
Rs. 3,399 Rs. 4,520

Tax included Shipping calculated at checkout

Description

Features:-

  • Automatically identify test mode for AC voltage/DC voltage/Resistance/continuity
  • Non-connection AC voltage detection, and judge the strength by light and buzzer
  • Self-calibration when power on to ensure accuracy
  • Live Firewire recognition
  • Display with backlight
  • True RMS measurement
  • Data hold
  • Low battery indication
  • Auto power off
  • Safety rating: CAT III 600V
    Code 9247-190

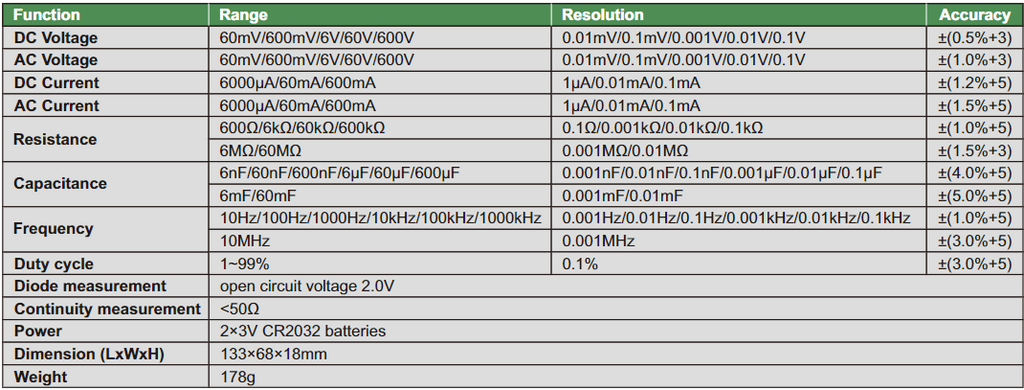

    Function Range Resolution Accuracy
    DC voltage 60mV/600mV/6V/60V/600V 0.01mV/0.1mV/0.001V/0.01V/0.1V (0.5%+3)
    AC voltage (50-60Hz) 60mV/600mV/6V/60V/600V 0.01mV/0.1mV/0.001V/0.01V/0.1V (1.0%+3)
    DC current 6000μA/60mA/600mA 1μA/0.01mA/0.1mA (1.2%+3)
    AC current 6000μA/60mA/600mA 1μA/0.01mA/0.1mA (1.5%+5)
    Resistance 600Ω/6kΩ/60kΩ/600kΩ 0.1Ω/0.001kΩ/0.01kΩ/0.1kΩ (1.0%+4)
    6MΩ/60MΩ 0.001MΩ/0.01MΩ (1.5%+3)
    Capacitance 6nF/60nF/600nF/6μF/60μF/600μF 0.001nF/0.01nF/0.1nF/0.001nF/0.01μF/0.1μF (4.0%+5)
    6mF/60mF 0.001mF/0.01mF (5.0%+5)
    Frequency 10Hz/100Hz/1000Hz/10kHz/100kHz/1000kHz 0.001Hz/0.01Hz/0.1Hz/0.001Hz/0.01Hz/0.1HZ (1.0%+5)
    10MHz 0.001MHz (3.0%+5)
    Duty cycle  1~99% 0.10% (3.0%+5)
    Diode measurement open circuit voltge 2.0V 1mV (1.0%+5d)
    Continuity measurement <50Ω
    Power  2x3V CR2032 btteries
    Dimension (LxWxH) 133x68x18mm
    Weight 178g
