Smart Microscope - ISM-DL400

Save 25%

Size: ISM-DL400
Price:
Rs. 324,049 Rs. 430,985

Tax included Shipping calculated at checkout

Description

Features:-

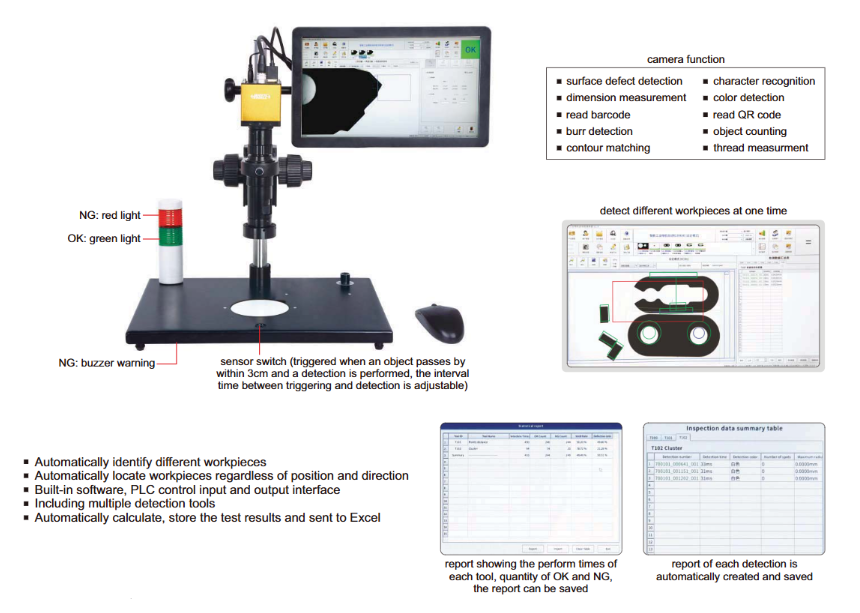

  • Automatically identify different workpieces
  • Automatically locate workpieces regardless of position and direction
  • Built-in software, PLC control input and output interface
  • Including multiple detection tools
  • Automatically calculate, store the test results and export to Excel

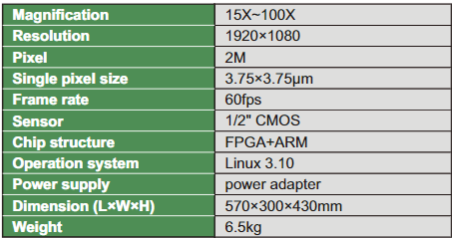

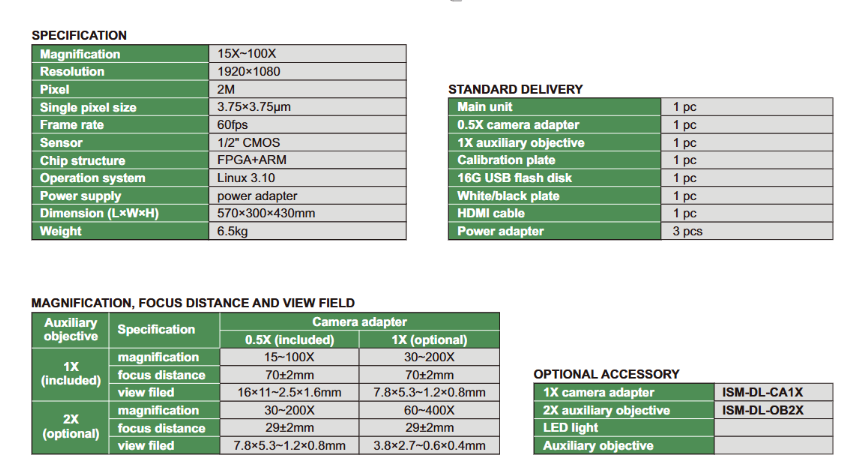

Code ISM-DL400
Magnification 15X~100X
Resolution 1920x1080
Pixel 2M
Single Pixel size 3.75x3.75μm
Frame rate 60fps
Sensor 1/2" CMOS
Chip structure FPGA+ARM
Operating system Linux 3.10
power supply Power adapter
Dimension (LxWxH) 570x300x430mm
Weight 6.5kg
