Surface Profile Measuring Machine - SPM-1000

Save 25%

Size: SPM-1000
Price:
Rs. 1,702,689 Rs. 2,264,576

Tax included Shipping calculated at checkout

Description

Features:-

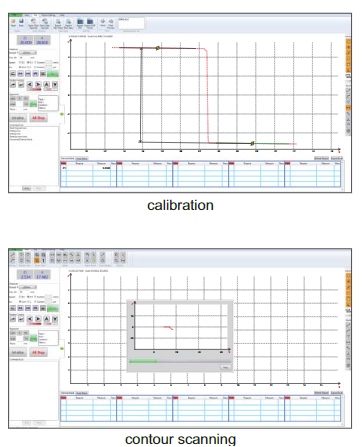

  • Software is included, for surface profile measurement and data output
  • Probe compensation

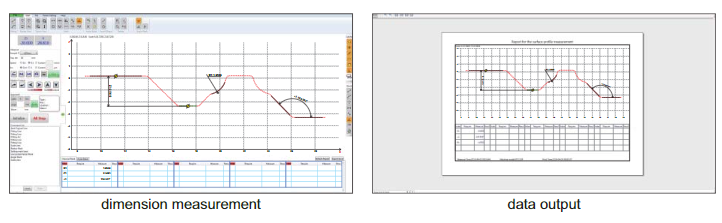

  • Output as format txt, csv, etc.
  • Large range design, the leverage ratio is 1:2.2, maintain the original accuracy of the sensor
  • The overall structure of the Z-axis sensor does not have any elastic components, ensuring the measuring force is constant regardless the position of probe

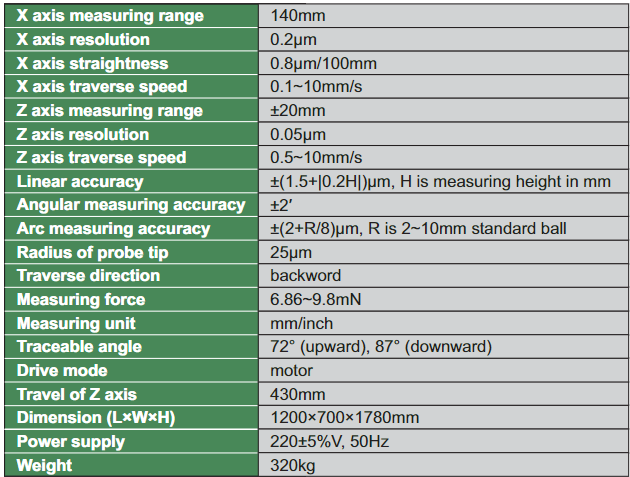

    Code SPM-1000
    X axis measuring range 140mm
    X axis resolution 0.2μm
    X axis Straightness 0.8/100mm
    X axis Traverse speed 0.1~10mm/s
    Z axis Measuring range +20mm
    Z axis resolution  0.05μm
    Z axis Traverse speed 0.5~10mm/s
    Linear accuracy +(1.5+I0.2HI)μm , H is measuring height in mm
    Angular measuring accuracy +2
    Arc measuring accuracy +(2+R/8)μm , R is 2~10mm standard ball
    Radius of probe tip 25μm
    Traverse direction backword
    Measuring force 6.86~9.8mN
    Measuring unit mm/inch
    Traceable angle 72° (upward), 87° (downward)
    Drive mode motor
    Travel of Z axis  430mm
    Dimension (LxWxH) 1200x700x1780mm
    Power supply 220+5%V, 50Hz
    Weight 320Kg
