Three Points Internal Micrometer (Individual) - 3227

Save 22%

Size: 3227-8 (6-8MM)
Price:
Rs. 15,990 Rs. 20,467.20

Tax included Shipping calculated at checkout

Description

Features:-
  • Meet DIN 863 - 4
  • Ratchet stop
  • Graduation 6-12mm 0.001mm
  • Supplied with manufacturer inspection certificate

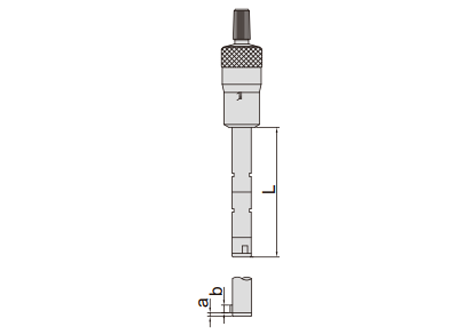

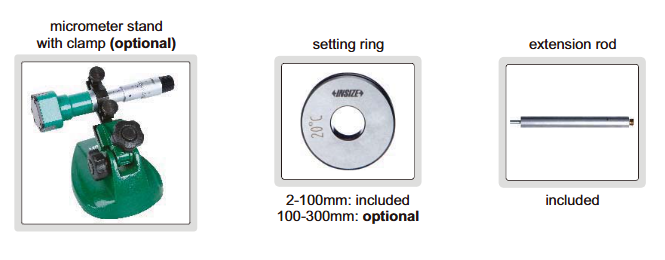

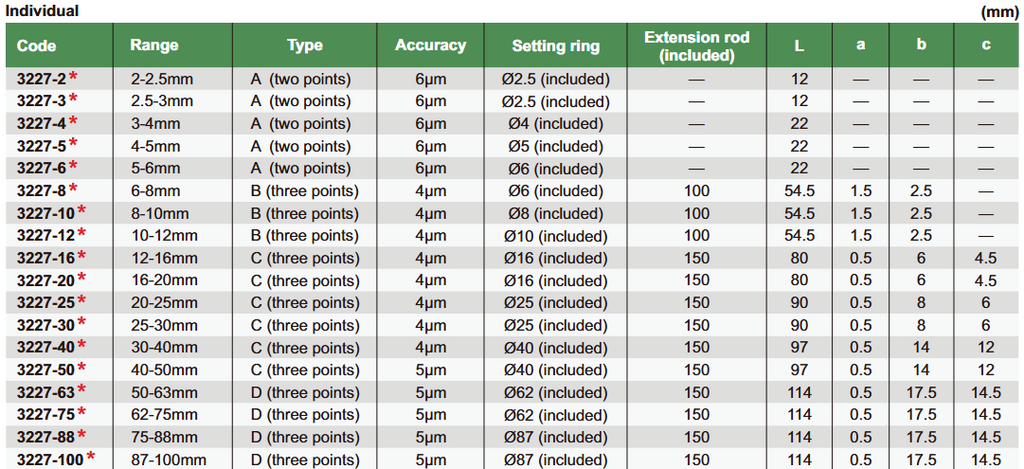

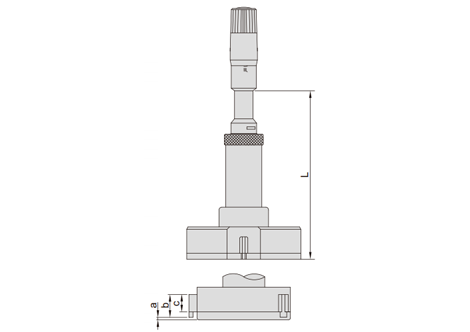

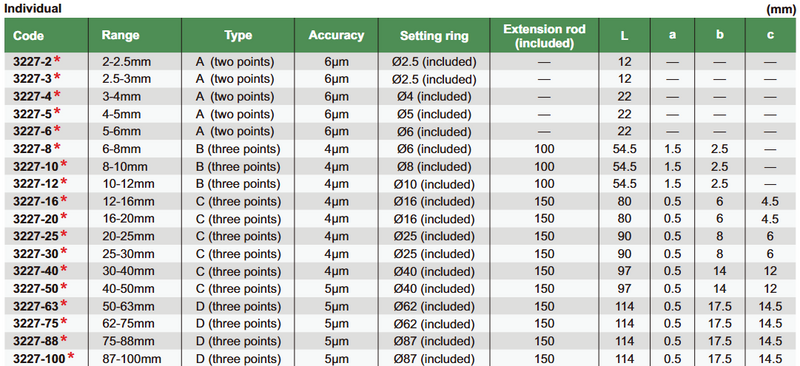

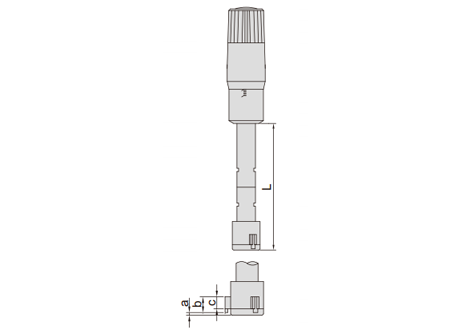

    CODE Range Accuracy Type Setting ring (included) Extension rod (included) L a b c

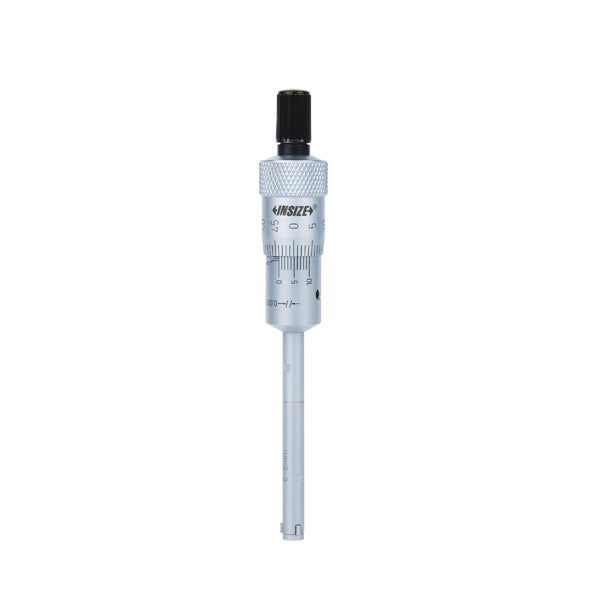

    3227-8 6-8mm B(Three Points) 4μm Ø6 100 54.5 1.5 2.5 -
    3227-10 8-10mm B(Three Points) 4μm Ø8 100 54.5 1.5 2.5 -
    3227-12 10-12mm B(Three Points) 4μm Ø10 100 54.5 1.5 2.5 -

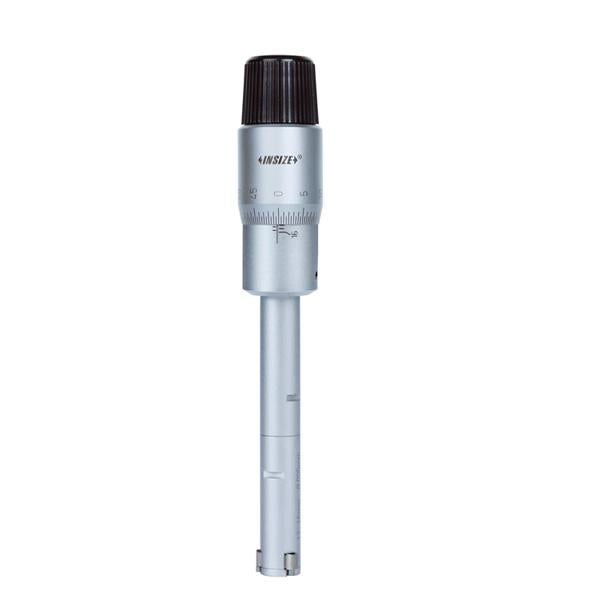

    3227-16 12-16mm c(Three Points) 4μm Ø16 150 80 0.5 6 4.5
    3227-20 16-20mm c(Three Points) 4μm Ø16 150 80 0.5 6 4.5
    3227-25 20-25mm c(Three Points) 4μm Ø25 150 90 0.5 8 6
    3227-30 25-30mm c(Three Points) 4μm Ø25 150 90 0.5 8 6
    3227-40 30-40mm c(Three Points) 4μm Ø40 150 97 0.5 14 12
    3227-50 40-50mm c(Three Points) 5μm Ø40 150 97 0.5 14 12

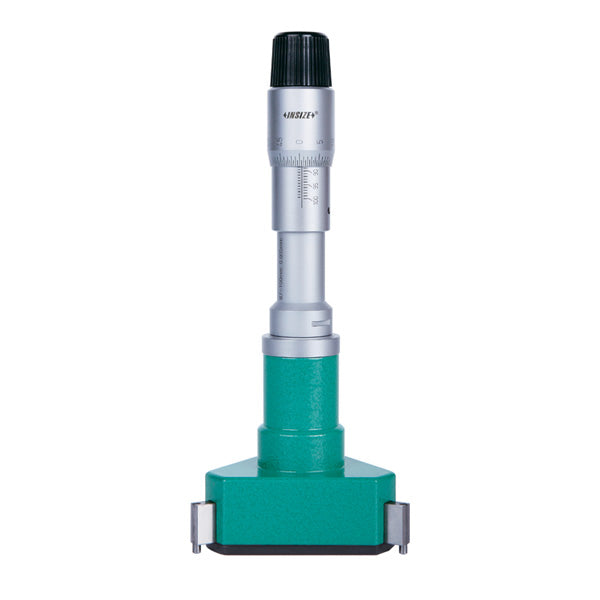

    3227-63 50-63mm D(Three Points) 5μm Ø62 150 114 0.5 17.5 14.5
    3227-75 62-75mm D(Three Points) 5μm Ø62 150 114 0.5 17.5 14.5
    3227-88 75-88mm D(Three Points) 5μm Ø87 150 114 0.5 17.5 14.5
    3227-100 87-100mm D(Three Points) 5μm Ø87 150 114 0.5 17.5 14.5
