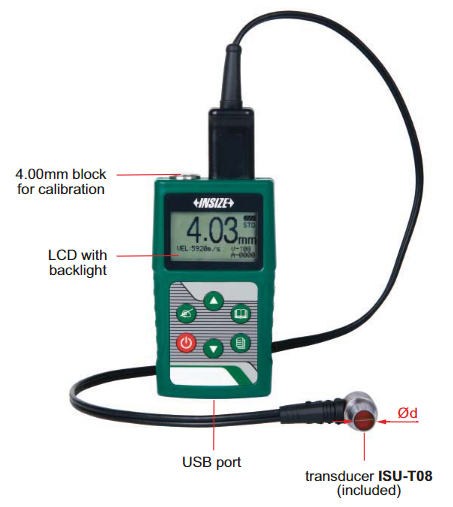

Ultrasonic Thickness Gage - ISU-250C

Save 25%

Size: ISU-250C
Price:
Rs. 79,259 Rs. 105,415

Tax included Shipping calculated at checkout

Description

Features:-
  • MEASURE THE THICKNESS FROM ONE SIDE OF OBJECTS, SUITABLE FOR PIPES,  TANKS, ETC.
  • APPLICABLE MATERIAL: METAL, PLASTIC GLASS, NYLON, RESIN CERAMIC, ICE.
  • TOLERANCE MEASURMENT
  • AVERAGE CALCULATION OF MAXIMUM 9 READINGS
  • DATA CAN BE INPUT IN EXCEL AND WORD AS KEYBOARD SIGNAL
  • INSPECTION CERTIFICATE  TRACEABLE TO DKD LAB GERMANY
    Code ISU-250C
    Measuring range refer to specification of transducers
    Resolution 0.1/0.01mm
    Accuracy

    +0.04mm (H<10mm)
    +(0.04+H/1000)mm(10<H<100mm) +H/333mm(H>100mm)
    H is the thickness to be measured in mm

    Velocity 1000-9999m/s
    Operation temperature of main unit  -20~50°C
    Output USB
    Measuring unit mm/inch
    Power supply 2x1.5V AAA batteries
    Dimension 64x116x27mm
    Weight 220g
